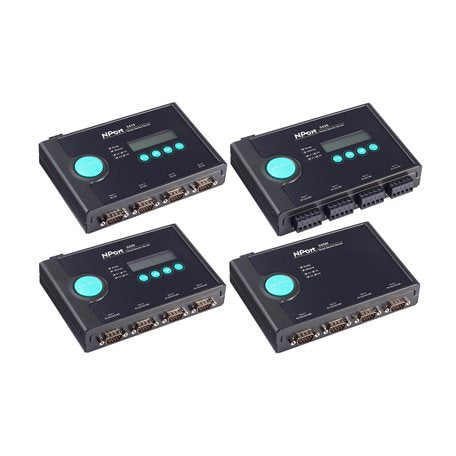

Moxa NPort-5430I | NPort 5400 4-Port RS-422/485 Serial Device Server, 2 kV

Authorised Moxa Partner

SKU:NPort 5430I

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NPort 5430I is a 4-port RS-422/485 serial device server with 2 kV serial isolation, connecting serial devices to a TCP/IP network through a single 10/100BaseT(X) Ethernet port. Each serial port operates independently, so different devices can be used for remote data polling or event handling. Serial connections use terminal blocks, and the unit runs from a 12 to 48 VDC supply with dual power inputs.

Support for Real COM, TCP Server, TCP Client, UDP, Pair Connection and Reverse Telnet modes makes it straightforward to integrate legacy serial equipment into modern networks. Configuration is available through the front LCD panel, Telnet, web console (HTTP/HTTPS) or Windows utility, and security options include HTTPS, SNMPv3 and AES-128 encryption. The metal housing suits desktop, wall or DIN-rail installation (with optional kit).

Features

- Each serial port operates independently over TCP/IP
- 2 kV built-in serial isolation protection
- Real COM, TCP Server, TCP Client, UDP, Pair Connection and Reverse Telnet modes
- Easy configuration via LCD panel, Telnet, web console or Windows utility
- Automatic data direction control for RS-485
- Dual DC power inputs with built-in watchdog timer
- HTTPS, SNMPv3 and AES-128 encryption support
- Desktop, wall or DIN-rail installation

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-422/RS-485 serial ports with terminal block connectors
- 1 x 10/100BaseT(X) Ethernet port (RJ45), 1.5 kV magnetic isolation
- 2 kV serial isolation
- Baudrate: 50 bps to 921.6 kbps
- Data bits 5-8, stop bits 1/1.5/2, parity None/Even/Odd/Space/Mark
- Pull high/low resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
- Automatic data direction control (ADDC) for RS-485
- Input voltage: 12 to 48 VDC, 2 power inputs
- Input current: 430 mA @ 12 VDC
- LCD panel display with push buttons for configuration
- Built-in watchdog timer, buzzer and RTC
- Metal housing, 181 x 103 x 33 mm (with ears), 740 g
- Operating temperature: 0 to 55 C
- Storage temperature: -40 to 75 C
- Humidity: 5 to 95% non-condensing
- Approvals: EN 55032/35, UL 62368-1, DNV
- MTBF: 718,600 hrs (Telcordia)

FAQs

Q: What serial standards does the NPort 5430I support?
A: It provides 4 serial ports supporting RS-422 and RS-485, with terminal block connectors. It does not provide RS-232 ports.

Q: What power supply does it require?
A: It accepts 12 to 48 VDC and has two power inputs for redundancy, using a removable 3-contact terminal block or power input jack.

Q: Does it provide serial isolation?
A: Yes. It has 2 kV serial isolation, plus 1.5 kV magnetic isolation on the Ethernet port.

Q: Which operation modes are available?
A: Real COM, TCP Server, TCP Client, UDP, Ethernet Modem, Pair Connection, Reverse Telnet or Disabled, configurable per serial port.

Q: How is the device configured?
A: Through the front LCD panel and push buttons, a Telnet console, a web console (HTTP/HTTPS) or the Windows utility.

Q: Can it be mounted on a DIN rail?
A: Yes. It supports desktop, wall and DIN-rail mounting, with the DIN-rail kit sold separately.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
