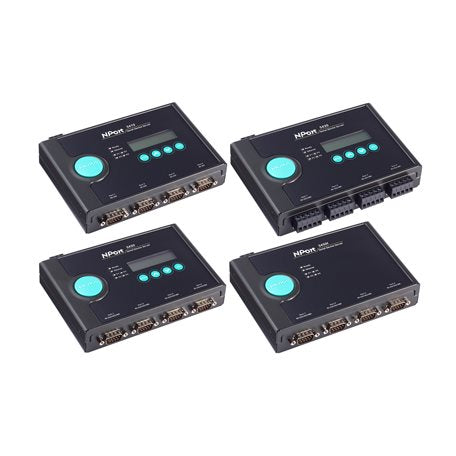

• Moxa NPort 5430 4-port RS-422/485 serial device server with teal buttons
1 1

Moxa

Moxa NPort-5430 | NPort 5430 4-Port RS-422/485 Serial Device Server, Terminal Block

Moxa NPort-5430 | NPort 5430 4-Port RS-422/485 Serial Device Server, Terminal Block

Authorised Moxa Partner

NPort 5430

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NPort 5430 is a 4-port RS-422/485 serial device server that connects serial equipment to a TCP/IP network over a single 10/100 Ethernet port. Terminal block serial connectors with no isolation make it suited to indoor industrial and building automation installations where up to four serial devices need remote polling or event handling.

Each serial port runs in its own operation mode, including Real COM, TCP Server, TCP Client, UDP, Ethernet Modem, Pair Connection and Reverse Telnet. An LCD panel with push buttons simplifies setup, and dual DC power inputs (12 to 48 VDC) support redundant power feeds. Real COM and TTY drivers are available for Windows, Linux and macOS.

Features

- User-friendly LCD panel and push buttons for easy installation
- Independent operation mode for each serial port
- Adjustable termination and pull high/low resistors for RS-485 via DIP switches
- Dual DC power inputs via terminal block and power jack
- Socket modes: TCP Server, TCP Client and UDP
- Configure by Telnet, web browser or Windows utility
- SNMP MIB-II for network management
- Real COM and TTY drivers for Windows, Linux and macOS
- Built-in watchdog timer, buzzer and real-time clock

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-422/RS-485 serial ports with terminal block connectors
- Serial isolation: none
- 1 x 10/100BaseT(X) Ethernet port (RJ45) with 1.5 kV built-in magnetic isolation
- Baudrate up to 921.6 kbps
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2; parity None, Even, Odd, Space, Mark
- Flow control: XON/XOFF
- Selectable RS-485 pull high/low resistors (1 kilo-ohm, 150 kilo-ohms) and 120 ohm terminator
- Operation modes: Real COM, TCP Server, TCP Client, UDP, Ethernet Modem, Pair Connection, Reverse Telnet
- Configuration: Telnet console, Windows utility, web console (HTTP/HTTPS)
- Security: HTTPS (TLS 1.2), SNMPv3, AES-128, RSA-1024, SHA-1, SHA-256
- Power: 12 to 48 VDC, 2 inputs (removable terminal block and power jack), 320 mA at 12 VDC
- Metal housing, 181 x 103 x 33 mm with ears, 740 g
- Desktop, wall mount or DIN-rail mounting (optional kit)
- Operating temperature 0 to 55°C, storage -40 to 75°C
- Humidity 5 to 95% non-condensing
- MTBF 826,688 hours (Telcordia)
- Package: NPort 5400 device server, CBL-PJTB-10 power cable, wall-mounting kit, quick installation guide, warranty card

FAQs

Q: Does the NPort 5430 support RS-232?
A: No. The NPort 5430 provides four RS-422/RS-485 ports on terminal block connectors. RS-232 devices need a different NPort 5400 Series model.

Q: Do the serial ports have isolation?
A: This model has no serial isolation. The Ethernet port has 1.5 kV built-in magnetic isolation. Serial isolation is a feature of the NPort 5430I variant.

Q: Can each port be configured differently?
A: Yes. Each of the four ports has its own operation mode, such as Real COM, TCP Server, TCP Client, UDP, Ethernet Modem, Pair Connection or Reverse Telnet.

Q: What power input does it need?
A: It accepts 12 to 48 VDC and has two power inputs, a removable terminal block and a power jack. A CBL-PJTB-10 power cable is included in the package.

Q: What is the operating temperature range?
A: This standard model operates from 0 to 55°C. Wide-temperature models are separate variants.

Q: How can it be mounted?
A: It can sit on a desktop or be wall mounted using the included wall-mounting kit. DIN-rail mounting requires an optional kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
