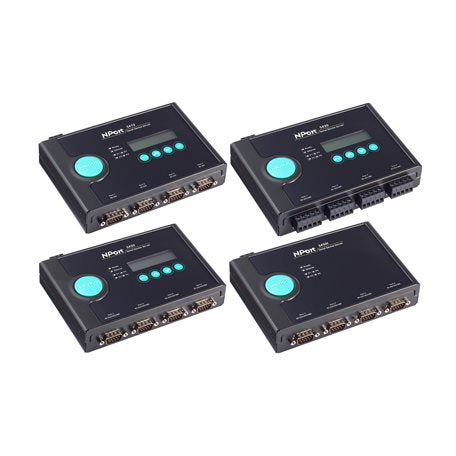

• Moxa NPort 5410 4-port RS-232 serial-to-Ethernet converter with teal buttons
1 1

Moxa

Moxa NPort-5410 | NPort 5410 4-Port RS-232 Serial Device Server, DB9, 12-48 VDC

Moxa NPort-5410 | NPort 5410 4-Port RS-232 Serial Device Server, DB9, 12-48 VDC

Authorised Moxa Partner

NPort 5410

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa NPort 5410 is a 4-port RS-232 serial device server that connects existing serial devices to a 10/100 Ethernet network with only basic configuration. Each port uses a DB9 male connector and supports baudrates up to 921.6 kbps, making it well suited to industrial automation, building management and other environments where legacy serial equipment needs network access. This variant is supplied for 12 to 48 VDC input without a power adapter.

The NPort 5410 supports Real COM, TCP Server, TCP Client, UDP, Pair Connection and Reverse Telnet operation modes, with Windows Real COM, Linux Real TTY and fixed TTY drivers and Android API support. An LCD panel and push buttons simplify setup, while HTTPS and SNMPv3 add secure management. The metal housing, dual DC power inputs and built-in watchdog timer suit continuous operation, and it can be mounted on a desktop, wall or DIN-rail with the optional kit.

Features

- Real COM, TCP Server, TCP Client, UDP, Pair Connection and Reverse Telnet operation modes
- LCD panel and push buttons for easy configuration
- Windows Real COM, Linux Real TTY and fixed TTY drivers, plus Android API support
- Dual DC power inputs with terminal block and power jack
- HTTPS and SNMPv3 security support
- Built-in watchdog timer, buzzer and RTC

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232 serial ports, DB9 male connectors
- 1 x 10/100BaseT(X) Ethernet port (RJ45)
- Magnetic isolation protection: 1.5 kV (built-in)
- Baudrate: 50 bps to 921.6 kbps
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: RTS/CTS, DTR/DSR
- RS-232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Input voltage: 12 to 48 VDC, 2 power inputs
- Input current: 365 mA @ 12 VDC
- Power connector: removable 3-contact terminal block and power input jack
- Configuration: Telnet console, Windows utility, web console (HTTP/HTTPS)
- Security: HTTPS (TLS 1.2), SNMPv3
- Metal housing, 181 x 103 x 33 mm with ears, 740 g
- Operating temperature: 0 to 55 C
- Installation: desktop, wall mount, DIN-rail (optional kit)
- MTBF: 880,274 hrs (Telcordia)

FAQs

Q: How many serial ports does the NPort 5410 have and what standard do they use?
A: The NPort 5410 has four serial ports using the RS-232 standard, each on a DB9 male connector.

Q: Is a power adapter included with this NPort 5410?
A: No. This variant is supplied without a power adapter and accepts a 12 to 48 VDC input through a terminal block or power input jack.

Q: What operation modes does the NPort 5410 support?
A: It supports Real COM, TCP Server, TCP Client, UDP, Ethernet Modem, Pair Connection and Reverse Telnet modes, and individual ports can also be disabled.

Q: Which operating systems are supported by the drivers?
A: Moxa provides Windows Real COM drivers, Linux Real TTY and fixed TTY drivers, and Android API support.

Q: Can the NPort 5410 be DIN-rail mounted?
A: Yes. It can be mounted on a desktop, on a wall, or on a DIN-rail using the optional DIN-rail kit.

Q: How is the NPort 5410 configured?
A: Configuration is available through the front LCD panel and push buttons, a Telnet console, a Windows utility, or a web console over HTTP or HTTPS.
