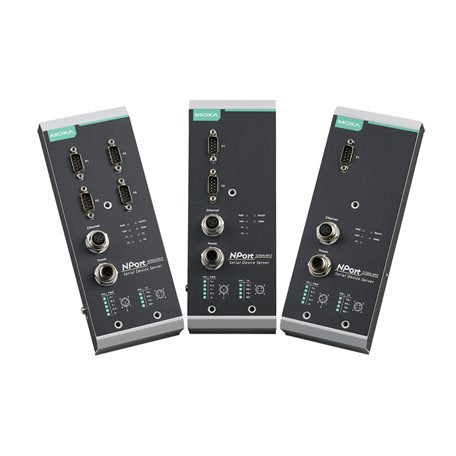

Moxa NPort 5250AI-M12-T | NPort 5250AI-M12 2-Port Serial Device Server, 12-48 VDC, -40 to 75°C

Authorised Moxa Partner

SKU:NPort 5250AI-M12-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The NPort 5250AI-M12-T is a 2-port RS-232/422/485 serial device server that connects legacy serial equipment to Ethernet networks. Part of the NPort 5000AI-M12 range, it is built for rugged and railway deployments with M12 connectors for both Ethernet and power, a 12 to 48 VDC input and a wide -40 to 75°C operating temperature range. This model has no PCB conformal coating.

Each DB9 serial port supports RS-232, RS-422 and RS-485 with 2 kV serial isolation, while the IP40 metal housing and compliance with EN 50155 on 24/48 VDC suit rolling stock and trackside applications. Real COM and TTY drivers for Windows and Linux, plus HTTPS and SNMPv3 security options, let it slot into existing SCADA, monitoring and control environments.

Features

- Complies with all EN 50155 mandatory test items for rail use
- M12 connectors for Ethernet and power with an IP40 metal housing
- 2 kV isolation protects serial signals
- Real COM and TTY drivers for Windows and Linux
- Security protocols including HTTPS and SNMPv3
- Built-in watchdog timer (WDT) for automatic reboot
- Configuration via Web Console, Windows Utility, Device Search Utility, MCC Tool or Telnet
- Management protocols include SNMPv1/v2c, DHCP, DNS, LLDP and SMTP

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x RS-232/422/485 serial ports, DB9 male
- 1 x 10/100BaseT(X) Ethernet port, M12 D-coded 4-pin female
- Serial baudrate: 50 bps to 230.4 kbps
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: RTS/CTS, DTR/DSR (RS-232 only), XON/XOFF
- RS-485 automatic data direction control (ADDC)
- 2 kV serial isolation
- Input voltage: 12 to 48 VDC via M12 A-coded 5-pin connector
- Input current: 360 mA @ 12 VDC
- Operating temperature: -40 to 75°C
- PCB conformal coating: No
- Compliant with EN 50155 on 24/48 VDC and EN 50121-4
- Safety: UL 60950-1; vibration: IEC 60068-2-6
- RoHS, CRoHS, WEEE compliant
- MTBF: 639,622 hrs

FAQs

Q: Which serial interfaces does the NPort 5250AI-M12-T support?
A: Both of its two DB9 male serial ports support RS-232, RS-422 and RS-485, with baudrates from 50 bps to 230.4 kbps.

Q: Is the NPort 5250AI-M12-T suitable for railway applications?
A: Yes. It uses M12 connectors, has an IP40 metal housing, operates from -40 to 75°C and complies with EN 50155 on 24/48 VDC and EN 50121-4.

Q: What power input does it require?
A: It accepts 12 to 48 VDC through an M12 A-coded 5-pin connector, drawing 360 mA at 12 VDC.

Q: Does this model have PCB conformal coating?
A: No, the -T model listed here is the version without PCB conformal coating.

Q: How does the Ethernet connection work?
A: It has one 10/100BaseT(X) port using an M12 D-coded 4-pin female connector.

Q: Which operating systems are supported for COM port mapping?
A: Real COM and TTY drivers are available for Windows and Linux, so serial applications can communicate over the network as if the devices were locally attached.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
