Moxa NPort 5250AI-M12-CT-T | NPort 5250AI-M12 2-Port Serial Device Server, 12-48VDC, -40 to 75C

Authorised Moxa Partner

SKU:NPort 5250AI-M12-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

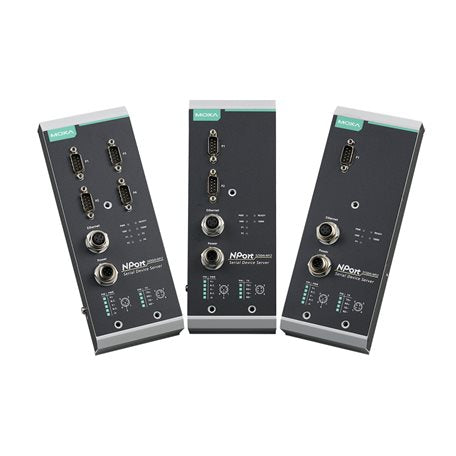

The NPort 5250AI-M12-CT-T is a railway-grade 2-port RS-232/422/485 serial device server that connects serial devices to an Ethernet network. It has M12 connectors, an IP40 metal housing and a 12 to 48 VDC power input, with a wide operating temperature range of -40 to 75°C and PCB conformal coating for harsh onboard and trackside environments.

The NPort 5250AI-M12-CT-T complies with EN 50121-4 and all mandatory EN 50155 test items, and provides 2 kV isolation on the serial signals. Real COM and Real TTY drivers for Windows and Linux, plus standard TCP and UDP operation modes, allow existing serial applications to run over Ethernet. Web-based configuration, SNMP monitoring with trap and email alerts, and a built-in watchdog timer simplify deployment and management.

Features

- Speedy 3-step web-based configuration
- COM port grouping and UDP multicast applications
- Real COM and Real TTY drivers for Windows and Linux
- Standard TCP/IP interface with versatile TCP and UDP operation modes
- Complies with EN 50121-4
- Complies with all EN 50155 mandatory test items
- M12 connectors and IP40 metal housing
- 2 kV isolation for serial signals
- SNMP monitoring with trap and email alerts
- Built-in watchdog timer, buzzer and RTC

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x RS-232/422/485 serial ports, DB9 male
- 1 x 10/100BaseT(X) Ethernet port, M12 D-coded 4-pin female
- Power input: 12 to 48 VDC, M12 A-coded 5-pin male
- Input current: 360 mA at 12 VDC
- Baudrate: 50 bps to 921.6 kbps
- Serial isolation: 2 kV
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% non-condensing
- PCB conformal coating
- Dimensions: 80 x 216.6 x 52.9 mm
- Weight: 686 g
- Compliance: EN 50155, EN 50121-4, UL 60950-1, RoHS, CRoHS, WEEE
- MTBF: 639,622 hrs (Telcordia)
- Package contents: 1 x device server, 1 x quick installation guide, 1 x warranty card

FAQs

Q: Which serial interfaces does the NPort 5250AI-M12-CT-T support?
A: It provides 2 serial ports on DB9 male connectors, each software-selectable for RS-232, RS-422 or RS-485. Baudrates range from 50 bps to 921.6 kbps.

Q: What power input does this model use?
A: It accepts 12 to 48 VDC through an M12 A-coded 5-pin male connector and is compliant with EN 50155 on 24/48 VDC supplies.

Q: Is it suitable for railway applications?
A: Yes. It complies with EN 50121-4 and all mandatory EN 50155 test items, and uses M12 connectors and an IP40 metal housing for onboard and trackside use.

Q: What does the CT-T suffix mean?
A: The CT designation indicates PCB conformal coating, and the T indicates the wide operating temperature range of -40 to 75°C.

Q: Which operating systems are supported for Real COM and TTY drivers?
A: Real COM drivers support Windows from 95 through 10 (x86/x64) as well as Windows Embedded CE and XP Embedded. Real TTY drivers support Linux kernels 2.4.x, 2.6.x, 3.x, 4.x and 5.x. Fixed TTY drivers cover several UNIX variants and Mac OS X.

Q: How is the device configured and monitored?
A: Use the Web Console over HTTP/HTTPS, Telnet Console or the Windows utility for configuration. SNMP v1/v2c monitoring with trap and email alerts is also supported.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
