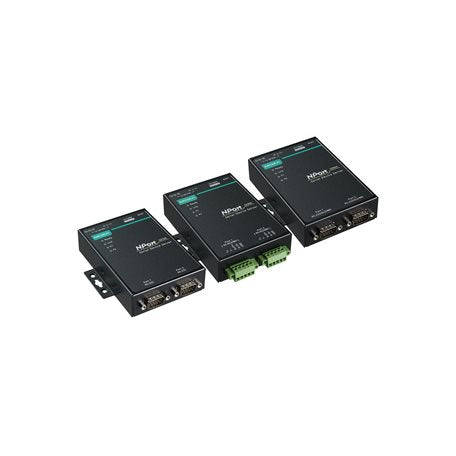

• Moxa NPort 5250A-T black 2-port RS232/485 converter with green terminals
1 1

Moxa

Moxa NPort-5250A-T | NPort 5250A-T 2-Port RS-232/422/485 Device Server, -40 to 75C

Moxa NPort-5250A-T | NPort 5250A-T 2-Port RS-232/422/485 Device Server, -40 to 75C

Authorised Moxa Partner

NPort 5250A-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa NPort 5250A-T is a 2-port RS-232/422/485 serial device server that connects serial equipment to an Ethernet network. This -T wide-temperature model is rated for operation from -40 to 75°C, making it suited to industrial automation, cabinet and outdoor enclosure deployments where standard devices would not survive.

Each DB9 male serial port supports baud rates up to 921.6 kbps, and the unit offers Real COM, Reverse Telnet, RFC2217, TCP Server, TCP Client, UDP and Pair Connection operation modes. Dual 12 to 48 VDC power inputs, built-in 1.5 kV magnetic isolation, a metal housing and a watchdog timer help keep legacy serial devices online. Windows Real COM, Linux Real TTY and fixed TTY drivers are supported, and the unit can be mounted on a desktop, wall or DIN rail with the optional kit.

Features

- Wide-temperature design for reliable operation from -40 to 75°C
- Real COM, Reverse Telnet, RFC2217, TCP Server/Client, UDP and Pair Connection operation modes
- Windows Real COM, Linux Real TTY and fixed TTY drivers, plus Arm-based platform support
- HTTPS (TLS 1.2) with AES-128 encryption for secure configuration
- Built-in watchdog timer (WDT) for automatic reboot
- Dual DC power inputs (12 to 48 VDC) for power redundancy
- Automatic data direction control (ADDC) for RS-485 without extra wiring
- Metal housing with desktop, wall or DIN-rail mounting options

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x RS-232/422/485 serial ports, DB9 male
- 1 x 10/100BaseT(X) Ethernet port, RJ45
- Serial baud rate up to 921.6 kbps (50 bps to 921.6 kbps standard rates)
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: RTS/CTS and DTR/DSR (RS-232 only)
- RS-485 ADDC automatic data direction control, 120 ohm terminator
- Pull high/low resistor: 1 kilo-ohm or 150 kilo-ohms
- Power input: 12 to 48 VDC, 2 power inputs, 119 mA @ 12 VDC
- Power connector: removable 3-contact terminal block and power input jack
- 1.5 kV built-in magnetic isolation protection
- Operating and storage temperature: -40 to 75°C (-40 to 167°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- Metal housing, 77 x 111 x 26 mm (100 x 111 x 26 mm with ears), 340 g
- Desktop, wall or DIN-rail mounting (optional kit)
- Security: HTTPS (TLS 1.2), AES-128, RSA-1024, SHA-256
- Management: HTTP, HTTPS, SNMPv1/v2c, Telnet, DHCP, DNS, SMTP, LLDP, serial console
- Certifications: EN 55032/35, CISPR 32, FCC Part 15B Class A, EN/IEC 62368-1, UL 60950-1, RoHS, CRoHS, WEEE
- MTBF: 847,750 hrs (Telcordia)

FAQs

Q: What is the difference between the NPort 5250A-T and the standard NPort 5250A?
A: The -T model is the wide-temperature version, rated for operation from -40 to 75°C, while the standard model is intended for normal ambient conditions.

Q: Which serial interfaces does it support?
A: Both of its DB9 male ports are software-selectable between RS-232, RS-422 and RS-485, with a maximum baud rate of 921.6 kbps.

Q: How is the unit powered?
A: It accepts 12 to 48 VDC and has two power inputs, via a removable 3-contact terminal block and a power input jack, so a second supply can be connected for redundancy.

Q: Can it be mounted on a DIN rail?
A: Yes. It can be installed on a desktop, on a wall, or on a DIN rail using the optional DIN-rail mounting kit.

Q: Which operating modes and drivers are available?
A: Supported modes include Real COM, Reverse Telnet, RFC2217, TCP Server, TCP Client, UDP and Pair Connection. Windows Real COM and Linux Real TTY drivers are available for host integration.

Q: What security features does it offer?
A: Management is available over HTTPS (TLS 1.2) with AES-128 encryption, and it supports local database authentication.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
