Moxa NPort-5250A | NPort 5250A 2-Port RS-232/422/485 Serial Device Server, 0-60C

Authorised Moxa Partner

SKU:NPort 5250A

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

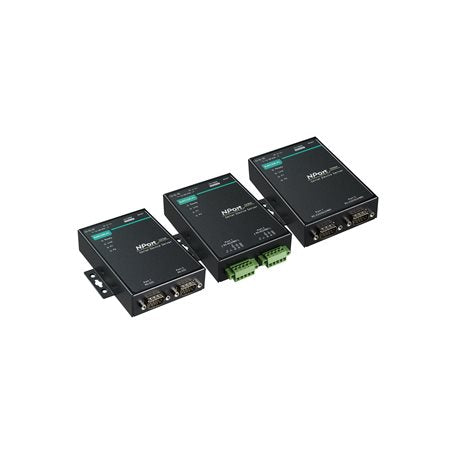

The Moxa NPort 5250A is a compact 2-port RS-232/422/485 serial device server that connects serial equipment to an Ethernet network. This standard temperature model operates from 0 to 60°C, making it suited to indoor industrial, building automation and lab deployments. Each DB9 male serial port supports baudrates up to 921.6 kbps, and the unit is housed in a rugged metal case.

Operation modes include Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, UDP, Pair Connection and Ethernet Modem, with Real COM and TTY drivers for Windows, Linux and macOS, including Arm-based platforms. Dual 12 to 48 VDC power inputs, a built-in watchdog timer and 1.5 kV magnetic isolation support reliable, continuous operation. It can be mounted on a desktop, on a wall, or on a DIN rail with an optional kit.

Features

- Compact 2-port RS-232/422/485 device server in a metal housing
- Operation modes include Real COM, Reverse Telnet, RFC2217, TCP Client/Server, UDP, Pair Connection and Ethernet Modem
- Real COM and TTY drivers for Windows, Linux and macOS, including Arm-based platforms
- Android API support
- Dual DC power inputs with a terminal block and a power jack
- Built-in watchdog timer for automatic reboot
- Automatic data direction control (ADDC) for RS-485
- HTTPS (TLS 1.2) with AES-128 encryption
- Desktop, wall or DIN-rail mounting (DIN-rail needs an optional kit)

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x RS-232/422/485 serial ports (DB9 male)
- 1 x 10/100BaseT(X) Ethernet port (RJ45)
- Baudrates from 50 bps to 921.6 kbps
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: RTS/CTS and DTR/DSR (RS-232 only)
- RS-485 terminator 120 ohms; pull high/low resistors 1 kilo-ohm or 150 kilo-ohms
- Automatic data direction control (ADDC) for RS-485
- Input voltage 12 to 48 VDC, 2 power inputs
- Input current 119 mA at 12 VDC
- Power connector: removable 3-contact terminal block and power input jack
- 1.5 kV built-in magnetic isolation
- Metal housing, 340 g
- Dimensions 77 x 111 x 26 mm (100 x 111 x 26 mm with ears)
- Operating temperature 0 to 60°C
- Storage temperature -40 to 75°C
- Humidity 5 to 95% non-condensing
- Mounting: desktop, wall, or DIN-rail with optional kit
- MTBF 847,750 hrs (Telcordia)

FAQs

Q: What serial interfaces does the NPort 5250A support?
A: Both of its DB9 male serial ports can be configured for RS-232, RS-422 or RS-485 operation.

Q: What is the operating temperature range of this model?
A: The NPort 5250A operates from 0 to 60°C. A wide-temperature -T variant exists for -40 to 75°C environments, but this listing is the standard temperature model.

Q: Which operating systems are supported for Real COM drivers?
A: Real COM and TTY drivers are available for Windows, Linux and macOS, including Arm-based platforms, and an Android API is also supported.

Q: Can the NPort 5250A be mounted on a DIN rail?
A: Yes, but DIN-rail mounting requires an optional mounting kit. The unit can also be used on a desktop or mounted on a wall.

Q: How is the device powered?
A: It accepts 12 to 48 VDC and has two power inputs, via a removable 3-contact terminal block and a power input jack.

Q: What security features are included?
A: It supports HTTPS (TLS 1.2) with AES-128 encryption for configuration access, and its serial and Ethernet ports are protected by 1.5 kV magnetic isolation on the Ethernet side.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
