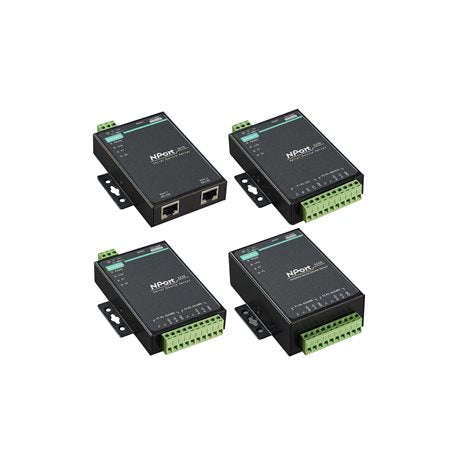

• Moxa NPort 5232I-T back view with black chassis, green terminal blocks, dual network ports
1 1

Moxa

Moxa NPort-5232I-T | NPort 5232I-T 2-Port RS-422/485 Serial Device Server

Moxa NPort-5232I-T | NPort 5232I-T 2-Port RS-422/485 Serial Device Server

Authorised Moxa Partner

NPort 5232I-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NPort 5232I-T is a 2-port RS-422/485 serial device server that connects serial devices such as PLCs, meters and sensors to an Ethernet LAN. Terminal block serial connectors, 2 kV serial isolation and a wide -40 to 75°C operating temperature range make it suited to industrial automation and remote monitoring deployments.

It supports Real COM, TCP Server, TCP Client, UDP, Reverse Telnet, Pair Connection and Ethernet Modem operation modes, with Windows Real COM drivers, Linux Real TTY drivers, fixed TTY drivers for macOS and other UNIX systems, and Android API support. The metal housing can be used on a desktop, wall mounted or fitted to a DIN rail with the optional kit.

Features

- Connects serial devices to an Ethernet LAN so software can reach them over a LAN or the Internet
- 2 kV optical isolation on the serial ports
- Wide operating temperature range of -40 to 75°C
- Operation modes include Real COM, TCP Server, TCP Client, UDP, Reverse Telnet, Pair Connection and Ethernet Modem
- Windows Real COM drivers, Linux Real TTY drivers, fixed TTY drivers for macOS and other UNIX systems, and Android API support
- Built-in watchdog timer (WDT), buzzer and real-time clock
- Local password authentication with management via SNMPv1, HTTP, Telnet, DHCP, BOOTP, SNTP and SMTP

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x RS-422/485 serial ports, terminal block connector
- 1 x 10/100BaseT(X) Ethernet port (RJ45)
- Serial isolation: 2 kV
- Ethernet magnetic isolation: 1.5 kV
- Baudrates: 110 bps to 230.4 kbps
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2; parity None, Even, Odd, Space, Mark
- Flow control: XON/XOFF
- RS-485 data direction control: ADDC (automatic data direction control)
- Power input: 12 to 48 VDC, 365 mA @ 12 VDC, removable 3-contact terminal block
- Operating temperature: -40 to 75°C
- Metal housing, 90 x 100.4 x 35 mm with ears, 380 g
- Installation: desktop, DIN-rail (optional kit) or wall mount
- MTBF: 309,383 hrs (Telcordia TR/SR)

FAQs

Q: What serial standards does the NPort 5232I-T support?
A: It provides 2 serial ports supporting RS-422 and RS-485, using terminal block connectors.

Q: What operating modes are available?
A: Supported modes are Real COM, TCP Server, TCP Client, UDP, Reverse Telnet, Pair Connection and Ethernet Modem, or the ports can be disabled.

Q: What power input does it require?
A: It accepts 12 to 48 VDC through a removable 3-contact terminal block, drawing 365 mA at 12 VDC.

Q: Can it be installed in a harsh environment?
A: Yes. It has a metal housing and an operating temperature range of -40 to 75°C, with 2 kV serial isolation and 1.5 kV Ethernet magnetic isolation.

Q: How can it be mounted?
A: It can be placed on a desktop, mounted on a wall, or fitted to a DIN rail using the optional DIN-rail kit.

Q: Which operating systems are supported for COM port mapping?
A: Windows Real COM drivers and Linux Real TTY drivers are available, along with fixed TTY drivers for macOS and other UNIX systems and Android API support.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
