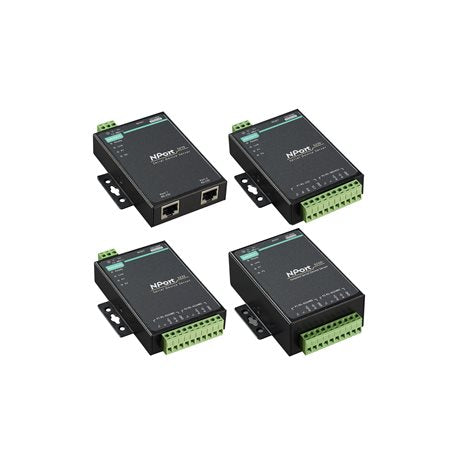

• Moxa NPort 5232-T back view with black chassis, green terminal blocks, dual ports
1 1

Moxa

Moxa NPort-5232-T | NPort 5232-T 2-Port RS-422/485 Serial Device Server, Wide Temp

Moxa NPort-5232-T | NPort 5232-T 2-Port RS-422/485 Serial Device Server, Wide Temp

Authorised Moxa Partner

NPort 5232-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NPort 5232-T is a 2-port RS-422/485 serial device server that connects serial equipment such as PLCs, meters and sensors to an IP Ethernet network. Both serial ports use terminal block connectors, and the -T variant is rated for wide temperature operation from -40 to 75°C, making it suited to factory floors, outdoor cabinets and other harsh industrial environments.

The device server supports TCP server, TCP client and UDP socket modes, with Real COM and TTY drivers so existing serial-based software can keep working over the network. Automatic data direction control (ADDC) simplifies 2-wire and 4-wire RS-485 wiring, and a Windows utility makes it easy to configure multiple units. The metal housing supports desktop, wall or DIN-rail mounting (DIN-rail kit optional).

Features

- Compact design for easy installation
- TCP server, TCP client and UDP socket modes
- Real COM/TTY drivers for use with existing serial software
- Windows utility for configuring multiple device servers
- ADDC for 2-wire and 4-wire RS-485
- SNMP MIB-II for network management
- Built-in watchdog timer, buzzer and RTC alerts
- Configuration via Windows utility, Telnet, web console or serial console

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x RS-422/485 serial ports with terminal block connectors
- 1 x 10/100BaseT(X) Ethernet port (RJ45) with 1.5 kV built-in magnetic isolation
- Baudrate 110 bps to 230.4 kbps
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2; parity None, Even, Odd, Space, Mark
- Flow control XON/XOFF
- RS-485 pull high/low resistor 1 kilo-ohm (fixed)
- Operation modes: Real COM, Reverse Telnet, TCP Server, TCP Client, UDP, Pair Connection, Ethernet Modem
- Power input 12 to 48 VDC via removable 3-contact terminal block, 280 mA at 12 VDC
- Operating temperature -40 to 75°C, humidity 5 to 95% non-condensing
- Metal housing, 90 x 100.4 x 22 mm with ears (67 x 100.4 x 22 mm without), 360 g
- Desktop, wall or DIN-rail mounting (DIN-rail kit optional)
- ESD protection IEC 61000-4-2: 4 kV contact, 8 kV air
- Safety UL 60950-1, DNV maritime approval
- MTBF 309,383 hours (Telcordia)

FAQs

Q: What serial interfaces does the NPort 5232-T support?
A: It provides 2 serial ports supporting RS-422 and RS-485 (2-wire and 4-wire) with terminal block connectors. RS-232 signals and RTS/CTS or DTR/DSR flow control are not available on this model.

Q: What is the operating temperature range?
A: The -T variant operates from -40 to 75°C, suitable for outdoor enclosures, cold storage and hot industrial environments.

Q: How is the NPort 5232-T powered?
A: It accepts 12 to 48 VDC through a removable 3-contact terminal block and draws 280 mA at 12 VDC. A power supply is not part of the specification, so supply a suitable DC source.

Q: Can I use it with software that expects a local COM port?
A: Yes. Real COM and TTY drivers make the remote serial ports appear as local COM ports, so legacy serial applications can run unchanged over Ethernet.

Q: Does it support DIN-rail mounting?
A: It can be mounted on a desktop or wall, and DIN-rail mounting is available using an optional DIN-rail kit.

Q: Which network operation modes are available?
A: Real COM, Reverse Telnet, TCP Server, TCP Client, UDP, Pair Connection and Ethernet Modem modes are supported.
