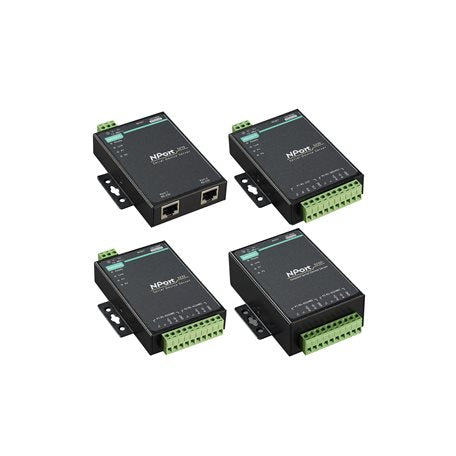

• Moxa NPort 5232 2-port RS-422/485 serial device server with black ports
1 1

Moxa

Moxa NPort-5232 | NPort 5232 2-Port RS-422/485 Serial Device Server, Terminal Block

Moxa NPort-5232 | NPort 5232 2-Port RS-422/485 Serial Device Server, Terminal Block

Authorised Moxa Partner

NPort 5232

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NPort 5232 is a compact 2-port RS-422/485 serial device server that connects industrial serial equipment to a 10/100M Ethernet network. This non-isolated model uses terminal block serial connectors and a standard 0 to 55°C operating range, making it a practical fit for control cabinets, building automation and machine connectivity projects in controlled environments.

Each serial port supports baudrates from 110 bps to 230.4 kbps and automatic data direction control (ADDC) for RS-485. It offers Real COM, TCP Server, TCP Client, UDP, Pair Connection and Reverse Telnet operation modes, with a built-in watchdog timer and 1.5 kV magnetic isolation on the Ethernet port. The metal housing can be mounted on a desktop, wall or DIN-rail with an optional kit.

Features

- Compact size for connecting industrial serial devices to Ethernet
- Real COM, TCP Server, TCP Client, UDP, Pair Connection and Reverse Telnet modes
- ADDC automatic data direction control for RS-485
- Configuration via Windows utility, Telnet, web console or serial console
- Linux real TTY and Android API support
- Built-in watchdog timer, buzzer and real-time clock
- Desktop, wall or DIN-rail mounting (optional kit)

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x RS-422/485 serial ports with terminal block connectors
- 1 x 10/100BaseT(X) Ethernet port (RJ45)
- Baudrate: 110 bps to 230.4 kbps
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: XON/XOFF (RTS/CTS and DTR/DSR for RS-232 only)
- RS-485 pull high/low resistor: 1 kilo-ohm or 150 kilo-ohms; 120 ohm terminator
- 1.5 kV built-in magnetic isolation on Ethernet
- Input voltage: 12 to 48 VDC, 280 mA @ 12 VDC
- Power connector: 1 removable 3-contact terminal block
- Metal housing, 360 g
- Dimensions: 90 x 100.4 x 22 mm (with ears), 67 x 100.4 x 22 mm (without ears)
- Operating temperature: 0 to 55°C; storage -40 to 75°C
- Humidity: 5 to 95% non-condensing
- MTBF: 309,383 hrs

FAQs

Q: What serial standards does the NPort 5232 support?
A: It provides 2 serial ports supporting RS-422 and RS-485 on terminal block connectors.

Q: What is the operating temperature range?
A: This standard model operates from 0 to 55°C, so it suits controlled indoor environments rather than extended-temperature sites.

Q: What power input does it need?
A: It accepts 12 to 48 VDC through a removable 3-contact terminal block, drawing 280 mA at 12 VDC.

Q: Can it be mounted on a DIN-rail?
A: Yes, DIN-rail mounting is supported with an optional kit. It can also be used on a desktop or mounted on a wall.

Q: Which operation modes are available?
A: Real COM, TCP Server, TCP Client, UDP, Pair Connection, Reverse Telnet and Ethernet Modem modes are supported.

Q: Does this model include serial port isolation?
A: No. This is the non-isolated variant, with 1.5 kV magnetic isolation on the Ethernet port only.
