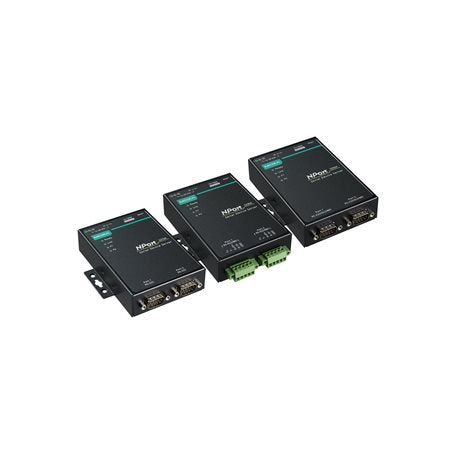

• Moxa NPort 5230A-T black 2-port RS-422/485 serial device server with green terminals
1 1

Moxa

Moxa NPort-5230A-T | NPort 5230A-T 2-Port RS-422/485 Device Server, -40 to 75°C

Moxa NPort-5230A-T | NPort 5230A-T 2-Port RS-422/485 Device Server, -40 to 75°C

Authorised Moxa Partner

NPort 5230A-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa NPort 5230A-T is a rugged 2-port RS-422/485 serial device server that connects serial devices to an Ethernet LAN. Serial connections use 5-pin terminal blocks, and the wide -40 to 75°C operating temperature range suits harsh industrial environments such as factory floors, outdoor cabinets and field installations.

With one 10/100BaseT(X) Ethernet port, serial speeds up to 921.6 kbps and 1.5 kV built-in magnetic isolation, it provides reliable network access to legacy serial equipment. Real COM, TCP Server, TCP Client, UDP, Reverse Telnet, RFC2217, Pair Connection and Ethernet Modem operation modes, plus dual 12 to 48 VDC power inputs, allow flexible and resilient deployment in existing control and monitoring systems.

Features

- Real COM drivers for Windows, Linux real TTY drivers, fixed TTY drivers and Android API support
- Operation modes include Real COM, TCP Server, TCP Client, UDP, Reverse Telnet, RFC2217, Pair Connection and Ethernet Modem
- Management via HTTP/HTTPS, SNMPv1/v2c, Telnet, DHCP, BOOTP, DNS, SMTP, LLDP and ARP
- HTTPS (TLS 1.2) and AES-128 encryption for secure configuration
- Automatic data direction control (ADDC) for RS-485
- Built-in watchdog timer for automatic reboot
- Dual power inputs (terminal block and power jack), 12 to 48 VDC
- Supports Arm-based platforms (Windows 11, Linux, macOS) and virtual machines (VMware ESXi, VMware Fusion, Parallels Desktop)

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x RS-422/485 serial ports with 5-pin terminal block
- 1 x 10/100BaseT(X) Ethernet port (RJ45)
- Serial speeds from 50 bps to 921.6 kbps
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- RS-485 pull high/low resistor: 1 kilo-ohm or 150 kilo-ohms; 120 ohm terminator
- 1.5 kV built-in magnetic isolation
- 12 to 48 VDC input, 2 power inputs, 119 mA @ 12 VDC
- Operating temperature -40 to 75°C
- Metal housing, 340 g
- Dimensions 77 x 111 x 26 mm (100 x 111 x 26 mm with ears)
- Desktop, DIN-rail (optional kit) and wall mounting
- MTBF 847,750 hours
- Safety: EN 62368-1, IEC 62368-1, UL 60950-1; EMC: EN 55032/35, FCC Part 15B Class A
- RoHS, CRoHS and WEEE compliant

FAQs

Q: What serial interfaces does the NPort 5230A-T support?
A: It provides two serial ports supporting RS-422 and RS-485, using 5-pin terminal block connectors. RS-232 is not supported on this model.

Q: What is the operating temperature range?
A: The NPort 5230A-T operates from -40 to 75°C, making it suitable for harsh industrial environments.

Q: Which operating modes are available?
A: Supported modes are Real COM, TCP Server, TCP Client, UDP, Reverse Telnet, RFC2217, Pair Connection and Ethernet Modem, plus a Disabled setting.

Q: How is the device powered?
A: It accepts 12 to 48 VDC through a removable 3-contact terminal block or a power input jack, giving two power inputs for redundancy.

Q: Can it be mounted on a DIN rail?
A: Yes. It supports desktop and wall mounting as standard, and DIN-rail mounting with the optional DIN-rail kit.

Q: Which operating systems are supported for COM port mapping?
A: Real COM drivers are available for Windows, with Linux real TTY drivers, fixed TTY drivers and Android API support, and compatibility with Arm-based platforms and common virtual machines.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
