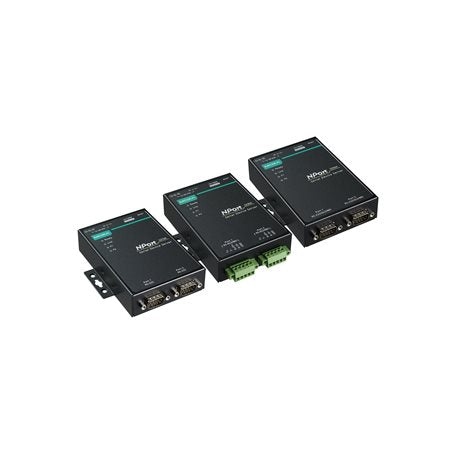

• Moxa NPort 5230A 2-port RS422/485 serial device server with green terminals
1 1

Moxa

Moxa NPort-5230A | NPort 5200A 2-Port RS-422/485 Serial Device Server, 0-60°C

Moxa NPort-5230A | NPort 5200A 2-Port RS-422/485 Serial Device Server, 0-60°C

Authorised Moxa Partner

NPort 5230A

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa NPort 5230A is a 2-port RS-422/485 serial device server that connects serial equipment to an Ethernet network, giving PCs and hosts direct access to serial devices over TCP/IP. This standard temperature model operates from 0 to 60°C and is housed in a compact metal enclosure, suited to controlled indoor industrial and commercial automation environments.

Each port supports baudrates up to 921.6 kbps and a range of operation modes including Real COM, TCP Server, TCP Client, UDP, Pair Connection, RFC2217 and Reverse Telnet. Real COM and TTY drivers are available for Windows, Linux and macOS, and dual 12 to 48 VDC power inputs allow redundant or flexible power connection.

Features

- Real COM, TCP Server, TCP Client, UDP, Pair Connection, RFC2217 and Reverse Telnet operation modes
- Real COM and TTY drivers for Windows, Linux and macOS
- Automatic data direction control (ADDC) for RS-485
- Selectable pull high/low resistors and 120 ohm terminator for RS-485
- Dual DC power inputs with terminal block and power jack
- HTTPS (TLS 1.2) and AES-128 encryption support
- Built-in watchdog timer for automatic reboot
- Management via HTTP/HTTPS, SNMPv1/v2c, Telnet and DHCP/BOOTP

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x RS-422/485 serial ports (5-pin terminal block)
- 1 x 10/100BaseT(X) RJ45 Ethernet port with 1.5 kV built-in magnetic isolation
- Serial baudrates from 50 bps to 921.6 kbps
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- RS-485 pull high/low resistors: 1 kilo-ohm or 150 kilo-ohms; 120 ohm terminator
- Input voltage: 12 to 48 VDC, 2 power inputs
- Input current: 119 mA @ 12 VDC
- Power connector: removable 3-contact terminal block and power input jack
- Metal housing, 340 g
- Dimensions: 100 x 111 x 26 mm (with ears), 77 x 111 x 26 mm (without ears)
- Mounting: desktop, wall mount, DIN-rail with optional kit
- Operating temperature: 0 to 60°C; storage temperature: -40 to 75°C
- Humidity: 5 to 95% non-condensing
- Certifications: CISPR 32, FCC Part 15B Class A, EN 62368-1, IEC 62368-1, UL 60950-1, RoHS, CRoHS, WEEE
- MTBF: 847,750 hrs (Telcordia)

FAQs

Q: What serial standards does the NPort 5230A support?
A: It provides 2 serial ports supporting RS-422 and RS-485, using a 5-pin terminal block connector.

Q: What operating temperature range does this model cover?
A: This is the standard temperature model, rated for 0 to 60°C operation.

Q: Which operation modes are available?
A: Real COM, TCP Server, TCP Client, UDP, Pair Connection, RFC2217, Reverse Telnet and Ethernet Modem modes are supported.

Q: Which operating systems are supported by the drivers?
A: Real COM and TTY drivers are available for Windows, Linux and macOS.

Q: How is the device powered?
A: It accepts 12 to 48 VDC and has two power inputs, using a removable 3-contact terminal block and a power input jack.

Q: Can it be DIN-rail mounted?
A: Yes. It supports desktop and wall mounting, and DIN-rail mounting with the optional DIN-rail kit.
