Moxa NPort-5230 | NPort 5200 2-Port Serial Device Server, RS-232, RS-422/485

Authorised Moxa Partner

SKU:NPort 5230

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

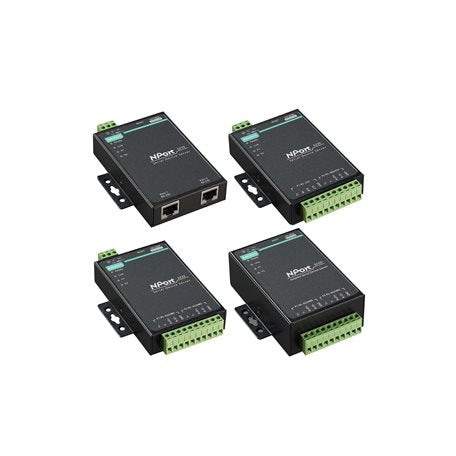

The Moxa NPort 5230 is a compact 2-port serial device server that connects one RS-232 port and one RS-422/485 port to a 10/100 Mbps Ethernet network via terminal block connectors. It lets serial devices such as PLCs, meters, sensors and controllers be accessed over TCP/IP using Real COM or TTY drivers, or socket modes including TCP Server, TCP Client and UDP.

Built in a rugged metal housing with a wide 12 to 48 VDC power input and 0 to 55°C operating range, the NPort 5230 suits desktop, wall or DIN-rail mounting (optional kit). Automatic RS-485 data direction control, built-in 1.5 kV Ethernet magnetic isolation, and a watchdog timer, buzzer and RTC support reliable day-to-day operation in industrial and commercial serial networking deployments.

Features

- Real COM and Real TTY drivers for Windows and Linux
- Fixed TTY drivers for macOS and various UNIX systems
- Android API support
- Socket modes: TCP Server, TCP Client, UDP, Pair Connection, Reverse Telnet
- Ethernet Modem mode
- Automatic data direction control (ADDC) for RS-485
- Built-in 1.5 kV magnetic isolation for Ethernet
- Built-in watchdog timer, buzzer and RTC
- Wide 12 to 48 VDC power input
- Configuration via Windows Utility, Serial Console, Telnet Console or Web Console (HTTP)
- Metal housing with desktop, wall or DIN-rail mounting

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x serial ports: 1 x RS-232, 1 x RS-422/485, terminal block connector
- 1 x 10/100BaseT(X) Ethernet port (RJ45)
- Baudrate: 110 to 230400 bps
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF
- Ethernet magnetic isolation protection: 1.5 kV (built-in)
- Input voltage: 12 to 48 VDC, 1 removable 3-contact terminal block
- Input current: 325 mA @ 12 VDC
- Operating temperature: 0 to 55°C
- Storage temperature: -40 to 75°C
- Humidity: 5 to 95% (non-condensing)
- Metal housing, 360 g
- Dimensions (with ears): 90 x 100.4 x 22 mm
- Dimensions (without ears): 67 x 100.4 x 22 mm
- Installation: desktop, DIN-rail (optional kit), wall mounting
- Certifications: CISPR 32, FCC Part 15B Class A, UL 60950-1, DNV, RoHS, CRoHS, WEEE
- MTBF: 377,937 hrs (Telcordia)

FAQs

Q: What serial interfaces does the NPort 5230 provide?
A: It has two serial ports on terminal block connectors: one RS-232 port and one RS-422/485 port.

Q: Which operating modes does the NPort 5230 support?
A: It supports Real COM, Reverse Telnet, TCP Server, TCP Client, UDP, Pair Connection and Ethernet Modem modes, as well as a disabled setting.

Q: What power input does it require?
A: It accepts 12 to 48 VDC through a removable 3-contact terminal block. A power adapter is not described as part of the unit specifications, so confirm your power supply separately.

Q: Can the NPort 5230 be DIN-rail mounted?
A: Yes. It can be desktop or wall mounted, and DIN-rail mounting is supported with the optional DIN-rail kit.

Q: What is the maximum baudrate?
A: The serial ports support baudrates from 110 up to 230400 bps.

Q: What operating temperature range does this model cover?
A: This standard model operates from 0 to 55°C and is stored at -40 to 75°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
