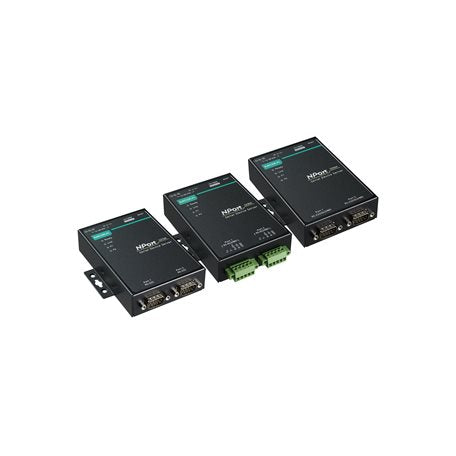

Moxa NPort-5210A-T | NPort 5210A-T 2-Port RS-232 Serial Device Server, -40 to 75C

Authorised Moxa Partner

SKU:NPort 5210A-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NPort 5210A-T is a 2-port RS-232 serial device server that connects serial devices to an Ethernet network. This wide-temperature model is rated for operation from -40 to 75°C and includes built-in surge protection, making it suited to industrial cabinets, outdoor enclosures and other demanding environments.

Two DB9 male serial ports and a 10/100M Ethernet interface let you network legacy RS-232 equipment. Multiple operation modes are supported, including Real COM, TCP Server, TCP Client, UDP, Reverse Telnet, RFC2217, Ethernet Modem and Pair Connection, so the unit can be matched to a wide range of host software and deployment designs.

Features

- Wide operating temperature range of -40 to 75°C
- Built-in serial surge protection
- Multiple operation modes including Real COM, TCP Server/Client, UDP and RFC2217
- DB9 male serial connectors
- Connects RS-232 serial devices to Ethernet networks

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x RS-232 serial ports
- DB9 male connectors
- 10/100M Ethernet
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature: -40 to 75°C (-40 to 167°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- Serial surge protection: 0.5 kV
- Operation modes: Real COM, TCP Server, TCP Client, UDP, Reverse Telnet, RFC2217, Ethernet Modem, Pair Connection

FAQs

Q: How many serial ports does the NPort 5210A-T have?
A: It has 2 RS-232 serial ports with DB9 male connectors.

Q: What operating temperature range does it support?
A: The NPort 5210A-T is the wide-temperature model, rated for operation from -40 to 75°C (-40 to 167°F).

Q: Does it include surge protection?
A: Yes. It includes built-in serial surge protection rated at 0.5 kV.

Q: Which operation modes are supported?
A: Supported modes include Real COM, TCP Server, TCP Client, UDP, Reverse Telnet, RFC2217, Ethernet Modem and Pair Connection.

Q: What type of Ethernet interface does it use?
A: It provides a 10/100M Ethernet connection to the network.

Q: What serial standard does this model support?
A: This model supports RS-232 only. Applications needing RS-422 or RS-485 require a different NPort model.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
