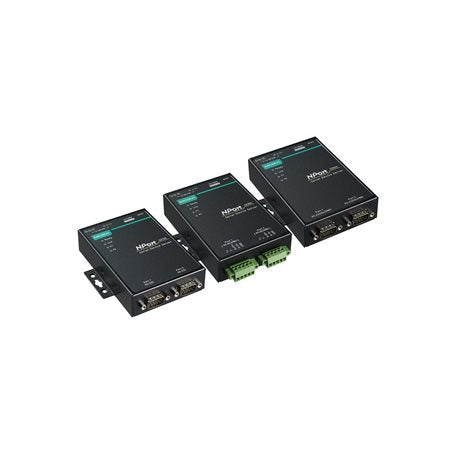

• Moxa NPort 5210A 2-port RS232 device server with green terminals
1 1

Moxa

Moxa NPort-5210A | NPort 5210A 2-Port RS-232 Serial Device Server, DB9

Moxa NPort-5210A | NPort 5210A 2-Port RS-232 Serial Device Server, DB9

Authorised Moxa Partner

NPort 5210A

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa NPort 5210A is a compact 2-port RS-232 serial device server that connects serial equipment to an Ethernet network. It provides two DB9 male RS-232 ports and a single 10/100BaseT(X) RJ45 Ethernet port, with baudrates from 50 bps to 921.6 kbps. Standard-temperature operation from 0 to 60°C suits office, lab and indoor commercial or industrial installations.

Surge protection covers the serial, Ethernet and power lines, and dual DC power inputs (terminal block and power jack) accept 12 to 48 VDC. Operation modes include Real COM, Reverse Telnet, RFC2217, TCP Server, TCP Client, UDP and Pair Connection, with Real COM/TTY drivers for Windows, Linux and macOS. Configuration is handled through a fast 3-step web interface with HTTPS support.

Features

- Fast 3-step web-based configuration
- Surge protection for serial, Ethernet and power
- Dual DC power inputs with power jack and terminal block
- Screw-type power connectors for secure installation
- COM port grouping and UDP multicast applications
- Versatile TCP and UDP operation modes
- Real COM/TTY drivers for Windows, Linux and macOS

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x RS-232 serial ports, DB9 male
- 1 x 10/100BaseT(X) Ethernet port, RJ45
- Baudrate: 50 bps to 921.6 kbps
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: RTS/CTS, DTR/DSR, XON/XOFF
- RS-232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Operation modes: Real COM, Reverse Telnet, RFC2217, TCP Server, TCP Client, UDP, Pair Connection, Ethernet Modem
- Security: HTTPS (TLS 1.2), AES-128, RSA-1024, SHA-256
- Input voltage: 12 to 48 VDC, 2 power inputs
- Input current: 119 mA @ 12 VDC
- Power connectors: removable 3-contact terminal block and power input jack
- Magnetic isolation protection: 1.5 kV built-in
- Built-in watchdog timer for automatic reboot
- Operating temperature: 0 to 60°C
- Storage temperature: -40 to 75°C
- Humidity: 5 to 95% non-condensing
- MTBF: 847,750 hours

FAQs

Q: What serial standard and connector does the NPort 5210A use?
A: It provides two RS-232 serial ports on DB9 male connectors, supporting TxD, RxD, RTS, CTS, DTR, DSR, DCD and GND signals.

Q: What operating temperature range does this model support?
A: This is the standard-temperature model, rated for operation from 0 to 60°C. It is intended for indoor installations without extreme temperature conditions.

Q: How is the NPort 5210A powered?
A: It accepts 12 to 48 VDC through two power inputs, a removable 3-contact terminal block and a power input jack. The input current is 119 mA at 12 VDC.

Q: Which operation modes are supported?
A: Supported modes include Real COM, Reverse Telnet, RFC2217, TCP Server, TCP Client, UDP, Pair Connection and Ethernet Modem.

Q: Which operating systems have Real COM drivers?
A: Real COM/TTY drivers are available for Windows, Linux and macOS, so existing serial-based software can use the network-connected ports.

Q: Does this device include surge protection?
A: Yes. It has surge protection on the serial, Ethernet and power lines, plus 1.5 kV built-in magnetic isolation on the Ethernet port.
