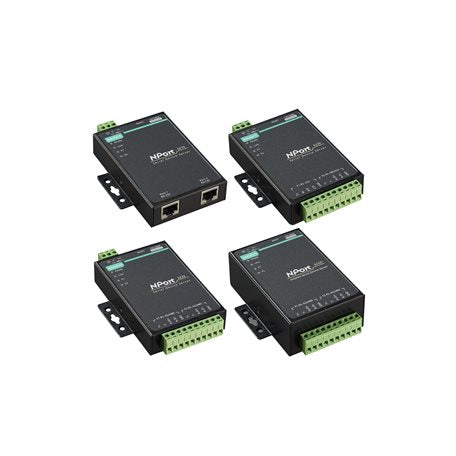

Moxa NPort-5210-T | NPort 5210-T 2-Port RS-232 Serial Device Server, -40 to 75°C

Authorised Moxa Partner

SKU:NPort 5210-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The NPort 5210-T is a 2-port RS-232 serial device server that connects two serial devices to a 10/100M Ethernet network. Built for industrial environments, this wide-temperature model operates from -40 to 75°C in a compact metal housing with a built-in watchdog timer, making it suited to automation, utilities and remote monitoring deployments.

Each serial port uses an 8-pin RJ45 connector and supports baudrates up to 230.4 kbps with RTS/CTS, DTR/DSR and XON/XOFF flow control. Operation modes include Real COM, TCP Server, TCP Client, UDP, Pair Connection, Reverse Telnet and Ethernet Modem, with Real COM and Real TTY drivers for Windows, Linux and macOS. Configuration is available through a Windows utility, web console, telnet or serial console, and the unit accepts 12 to 48 VDC input.

Features

- Makes serial devices network-ready quickly in a compact footprint
- Real COM and Real TTY drivers for Windows, Linux and macOS
- Operation modes: TCP Server, TCP Client, UDP, Pair Connection, Reverse Telnet, Ethernet Modem
- Configuration via Windows utility, web console, telnet console or serial console
- Built-in watchdog timer for automatic reboot, plus buzzer and RTC alerts
- Wide-temperature operation from -40 to 75°C for harsh environments
- SNMPv1, DHCP, BOOTP and DNS support for straightforward network integration

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x RS-232 serial ports with 8-pin RJ45 connectors
- 1 x 10/100BaseT(X) Ethernet port (RJ45)
- Baudrates up to 230.4 kbps (110 bps to 230400 bps)
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2; parity None, Even, Odd, Space, Mark
- Flow control: RTS/CTS, DTR/DSR, XON/XOFF
- RS-232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Input voltage 12 to 48 VDC, 325 mA @ 12 VDC
- Power connector: 1 removable 3-contact terminal block
- Operating temperature -40 to 75°C
- Ambient relative humidity 5 to 95% (non-condensing)
- 1.5 kV built-in magnetic isolation
- Metal housing, 340 g
- Dimensions: 90 x 100.4 x 22 mm (with ears), 67 x 100.4 x 22 mm (without ears)
- Installation: desktop, DIN-rail (with optional kit) or wall mounting
- MTBF: 381,342 hrs (Telcordia TR/SR)

FAQs

Q: What serial standard does the NPort 5210-T support?
A: It provides two RS-232 serial ports, each with an 8-pin RJ45 connector and support for TxD, RxD, RTS, CTS, DTR, DSR, DCD and GND signals.

Q: What is the operating temperature range?
A: This is the wide-temperature model, rated for operation from -40 to 75°C.

Q: Which operation modes are supported?
A: Real COM, TCP Server, TCP Client, UDP, Pair Connection, Reverse Telnet and Ethernet Modem modes are supported, along with a disabled setting.

Q: What power input does it require?
A: It accepts 12 to 48 VDC through a removable 3-contact terminal block, drawing 325 mA at 12 VDC.

Q: How can it be mounted?
A: It can be placed on a desktop or mounted on a wall. DIN-rail mounting is available with an optional kit.

Q: Which operating systems are supported by the Real COM drivers?
A: Real COM and Real TTY drivers are available for Windows, Linux and macOS.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
