Moxa NPort-5210 | NPort 5200 2-Port RS-232 Serial Device Server, 12-48 VDC

Authorised Moxa Partner

SKU:NPort 5210

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

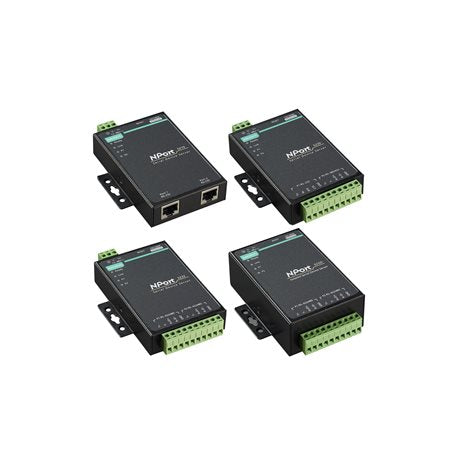

The Moxa NPort 5210 is a compact 2-port RS-232 serial device server that connects serial equipment such as PLCs, meters and sensors to an IP Ethernet LAN. It provides two 8-pin RJ45 RS-232 ports and one 10/100BaseT(X) Ethernet port, with a 12 to 48 VDC power input and an operating temperature range of 0 to 55 °C. This SKU ships without a power adapter.

Real COM/TTY drivers allow existing serial software to work over the network without modification, preserving your software investment. Operation modes include TCP Server, TCP Client, UDP, Real COM, Reverse Telnet, Pair Connection and Ethernet Modem, and the metal housing suits desktop, wall or optional DIN-rail installation.

Features

- Compact design for easy installation
- Real COM/TTY drivers let existing serial software run over the network
- Socket modes: TCP server, TCP client and UDP
- Remote control of serial devices over TCP/IP or a traditional COM/TTY port
- Windows utility for configuring multiple device servers
- Configuration via Windows utility, Telnet console, web console or serial console
- SNMP MIB-II for network management
- Drivers for Windows, Linux, macOS and Android
- Desktop, wall or optional DIN-rail mounting

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x RS-232 serial ports (8-pin RJ45)
- 1 x 10/100BaseT(X) Ethernet port (RJ45)
- Baudrate 110 bps to 230.4 kbps
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: RTS/CTS, DTR/DSR, XON/XOFF
- RS-232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Operation modes: TCP Server, TCP Client, UDP, Real COM, Reverse Telnet, Pair Connection, Ethernet Modem
- Magnetic isolation protection: 1.5 kV (built-in)
- Input voltage: 12 to 48 VDC, 325 mA @ 12 VDC
- Power connector: 1 removable 3-contact terminal block
- Built-in watchdog timer, buzzer and RTC
- Metal housing, 340 g
- Dimensions: 90 x 100.4 x 22 mm (with ears), 67 x 100.4 x 22 mm (without ears)
- Operating temperature: 0 to 55 °C
- Storage temperature: -40 to 75 °C
- Humidity: 5 to 95% non-condensing
- MTBF: 381,342 hrs (Telcordia)
- Package contents: device server, quick installation guide, warranty card

FAQs

Q: What serial standard does the NPort 5210 support?
A: It provides two RS-232 serial ports on 8-pin RJ45 connectors, supporting baudrates from 110 bps to 230.4 kbps.

Q: Will my existing serial software work with it?
A: Yes. Real COM/TTY drivers for Windows, Linux, macOS and Android let existing serial applications communicate over the network without changes.

Q: What power input does it use, and is an adapter included?
A: It accepts 12 to 48 VDC through a removable 3-contact terminal block. This SKU does not include a power adapter.

Q: What operation modes are available?
A: TCP Server, TCP Client, UDP, Real COM, Reverse Telnet, Pair Connection and Ethernet Modem.

Q: Can it be DIN-rail mounted?
A: Yes, using the optional DIN-rail kit. It can also be used on a desktop or wall mounted.

Q: What operating temperature range is supported?
A: This model operates from 0 to 55 °C. It is not the wide-temperature variant.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
