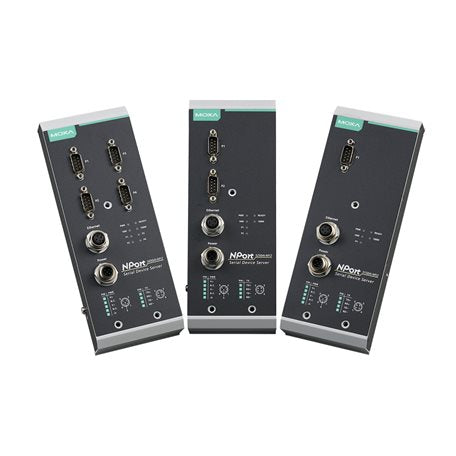

Moxa NPort-5150AI-M12-T | NPort 5150AI-M12-T 1-Port RS-232/422/485 Device Server, M12, -40 to 75C

Authorised Moxa Partner

SKU:NPort 5150AI-M12-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The NPort 5150AI-M12-T is a rugged 1-port RS-232/422/485 serial device server that connects a serial device to an Ethernet network. Built for rolling stock and wayside rail applications, it uses an M12 D-coded 10/100 Mbps Ethernet port and an M12 A-coded power input for shock and vibration resistance, and the -T model operates across a -40 to 75°C wide temperature range.

The unit accepts 12 to 48 VDC input and is compliant with EN 50121-4, with EN 50155 compliance on 24/48 VDC. Real COM and TTY drivers for Windows and Linux, COM port grouping and UDP multicast support, SNMPv3 and HTTPS (TLS 1.2) security, and a built-in watchdog timer, buzzer and RTC suit it to demanding transport and industrial deployments.

Features

- Rugged M12 connectors for Ethernet and power resist shock and vibration
- Compliant with EN 50121-4 and mandatory sections of EN 50155 (temperature, power input, surge, ESD, vibration)
- Wide-temperature -T model operates from -40 to 75°C
- Speedy 3-step web-based configuration
- Real COM/TTY drivers for Windows and Linux
- COM port grouping and UDP multicast applications
- Built-in buzzer and RTC alerts, plus watchdog timer for automatic reboot
- SNMPv3 and HTTPS (TLS 1.2) security with AES-128 and SHA-256 encryption
- Configurable via web console, Windows utility, Device Search Utility (DSU), MCC Tool or Telnet

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 1 x RS-232/422/485 serial port, DB9 male
- 1 x 10/100BaseT(X) Ethernet port, M12 D-coded 4-pin female
- Serial standards: RS-232, RS-422, RS-485
- Baudrate: 50 to 921.6k bps
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF
- RS-485 data direction control: ADDC (automatic data direction control)
- Serial isolation: 2 kV
- Power input: 12 to 48 VDC, M12 A-coded 5-pin male connector
- Input current: 310 mA @ 12 VDC
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Dimensions: 80 x 216.6 x 52.9 mm
- Weight: 686 g
- Railway: EN 50121-4; EN 50155 on 24/48 VDC
- MTBF: 789,341 hrs (Telcordia)
- 5-year warranty

FAQs

Q: Which serial interfaces does the NPort 5150AI-M12-T support?
A: It provides one DB9 male serial port supporting RS-232, RS-422 and RS-485, with automatic data direction control (ADDC) for RS-485.

Q: What connectors does this model use for Ethernet and power?
A: Ethernet is a 10/100BaseT(X) port on an M12 D-coded 4-pin female connector. Power is an M12 A-coded 5-pin male connector accepting 12 to 48 VDC.

Q: What is the operating temperature range?
A: The -T model operates from -40 to 75°C, with a storage range of -40 to 85°C.

Q: Is it suitable for rail applications?
A: Yes. It is compliant with EN 50121-4 and, on 24/48 VDC, with the mandatory sections of EN 50155, making it suited to rolling stock and wayside installations.

Q: Which operating systems are supported for COM port mapping?
A: Real COM/TTY drivers are available for Windows and Linux (kernel 2.4.x, 2.6.x, 3.x, 4.x and 5.x), and an Android API supports Android 3.1.x and later.

Q: What security features does it offer?
A: It supports SNMPv3 and HTTPS (TLS 1.2), with AES-128, RSA-1024, SHA-1 and SHA-256 encryption and local database authentication.
