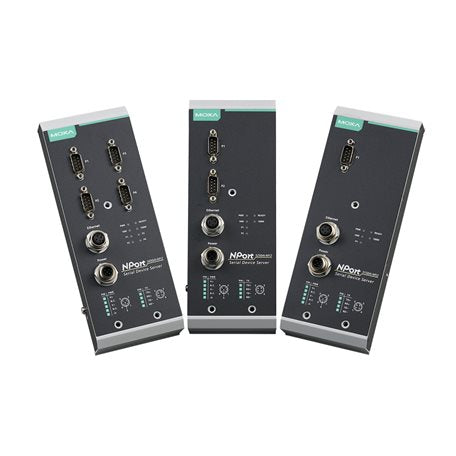

• Three Moxa NPort 5150AI-M12-CT-T device servers with M12 ports
1 1

Moxa

Moxa NPort 5150AI-M12-CT-T | NPort 5000AI-M12 Serial Device Server, 1-Port, -40 to 75°C, Coated

Moxa NPort 5150AI-M12-CT-T | NPort 5000AI-M12 Serial Device Server, 1-Port, -40 to 75°C, Coated

Authorised Moxa Partner

NPort 5150AI-M12-CT-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NPort 5150AI-M12-CT-T is a 1-port RS-232/422/485 serial device server built for rolling stock and wayside rail applications. It connects a serial device to an Ethernet network through a rugged M12 D-coded Ethernet connector and an M12 A-coded power input accepting 12 to 48 VDC. This -CT-T model has PCB conformal coating and a -40 to 75°C operating range for harsh environments.

The DB9 serial port supports baud rates from 50 bps to 921.6 kbps with 2 kV isolation protection. Windows Real COM, Linux Real TTY and Android API drivers are supported, and HTTPS and SNMPv3 provide secure management. The unit complies with EN 50121-4 and the essential sections of EN 50155 on 24/48 VDC.

Features

- Designed for rolling stock and wayside rail applications, compliant with EN 50121-4 and essential sections of EN 50155
- Rugged M12 connectors for Ethernet and power, resistant to shock and vibration
- PCB conformal coating for harsh environments
- Wide -40 to 75°C operating temperature range
- Built-in watchdog timer, buzzer and real-time clock for alerts
- Windows Real COM, Linux Real TTY and Android API driver support
- HTTPS and SNMPv3 security support
- 2 kV serial isolation protection

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232/422/485 serial port (DB9 male)
- 1 x 10/100BaseT(X) Ethernet port (M12 D-coded 4-pin female)
- Power input: 12 to 48 VDC via M12 A-coded 5-pin male connector
- Input current: 310 mA @ 12 VDC
- Baudrate: 50 bps to 921.6 kbps
- Serial isolation: 2 kV
- Operating temperature: -40 to 75°C
- Protection: PCB conformal coating
- Dimensions: 80 x 216.6 x 52.9 mm
- Weight: 686 g
- Railway compliance: EN 50121-4, EN 50155 on 24/48 VDC
- MTBF: 789,341 hrs

FAQs

Q: What serial interfaces does the NPort 5150AI-M12-CT-T support?
A: It has one DB9 male serial port that supports RS-232, RS-422 and RS-485, with baud rates from 50 bps to 921.6 kbps.

Q: What connectors are used for Ethernet and power?
A: Ethernet uses an M12 D-coded 4-pin female connector and power uses an M12 A-coded 5-pin male connector, accepting 12 to 48 VDC.

Q: Is this model suitable for rail applications?
A: Yes. It is designed for rolling stock and wayside rail use and complies with EN 50121-4, with EN 50155 compliance on 24/48 VDC input.

Q: What does the -CT-T suffix mean?
A: The -CT-T model has PCB conformal coating and a -40 to 75°C operating temperature range, suited to harsh environments.

Q: Which operating systems and drivers are supported?
A: Windows Real COM, Linux Real TTY (kernel 2.4.x, 2.6.x, 3.x, 4.x and 5.x) and Android API (3.1.x and later) are supported.

Q: How is the device configured and secured?
A: It can be configured through a web console (HTTP/HTTPS), Telnet, Windows utility, Device Search Utility or MCC Tool, and supports HTTPS and SNMPv3 for secure management.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
