Description

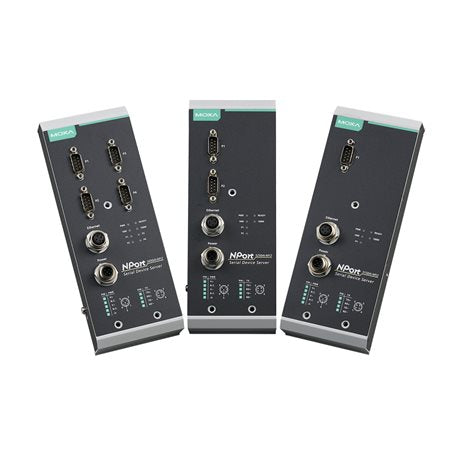

The Moxa NPort 5150AI-M12-CT is a 1-port RS-232/422/485 serial device server that connects a serial device to an Ethernet network. It uses M12 connectors for both Ethernet and power, accepts a 12 to 48 VDC input, and operates from -25 to 55°C. The CT model adds PCB conformal coating, and the unit meets EN 50121-4 and the mandatory EN 50155 test items, making it suited to railway and other vibration-prone installations.

The IP40 metal housing and 2 kV serial isolation protect connected equipment, while the DB9 male serial port supports baud rates from 50 bps to 921.6 kbps. Real COM and Real TTY drivers are available for Windows and Linux, and configuration is handled through a web console, Telnet console or Windows utility. SNMP monitoring with trap or email alerts, a built-in watchdog timer and a built-in buzzer and RTC support reliable remote operation.

Features

- Speedy 3-step web-based configuration
- COM port grouping and UDP multicast applications
- Real COM and Real TTY drivers for Windows and Linux
- Standard TCP/IP interface with versatile TCP and UDP operation modes
- Complies with EN 50121-4 and all EN 50155 mandatory test items
- M12 connectors for Ethernet and power with IP40 metal housing
- 2 kV isolation for serial signals
- SNMP monitoring with trap or email alerts
- Built-in watchdog timer for automatic reboot
- PCB conformal coating for added protection in harsh environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232/422/485 serial port (DB9 male)
- 1 x 10/100BaseT(X) Ethernet port (M12 D-coded 4-pin female)
- Input voltage: 12 to 48 VDC via M12 A-coded 5-pin male power connector
- Input current: 310 mA @ 12 VDC
- Baudrate: 50 bps to 921.6 kbps
- Flow control: RTS/CTS, DTR/DSR (RS-232 only), XON/XOFF
- 2 kV serial isolation
- PCB conformal coating
- Operating temperature: -25 to 55°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- IP40 metal housing
- Dimensions (H x W x D): 80 x 216.6 x 52.9 mm
- Weight: 686 g
- Railway: EN 50121-4, EN 50155 mandatory test items
- MTBF: 789,341 hrs (Telcordia)

FAQs

Q: Which serial interfaces does the NPort 5150AI-M12-CT support?
A: Its single DB9 male serial port supports RS-232, RS-422 and RS-485 (2-wire and 4-wire), with automatic data direction control for RS-485.

Q: What power input does this model accept?
A: It accepts 12 to 48 VDC through an M12 A-coded 5-pin male power connector, and is compliant with EN 50155 on 24/48 VDC.

Q: What does the CT suffix mean?
A: The CT model has PCB conformal coating for added protection, and operates from -25 to 55°C.

Q: Is it suitable for railway applications?
A: Yes. It complies with EN 50121-4 and all EN 50155 mandatory test items, and uses M12 connectors for Ethernet and power.

Q: Which operating systems are supported by the drivers?
A: Real COM drivers are available for Windows (including 95 through 10 and Embedded CE and XP Embedded), Real TTY drivers for Linux kernels 2.4.x to 5.x, and fixed TTY drivers for several UNIX variants and Mac OS X. An Android API is also available.

Q: How is the device configured and monitored?
A: Configuration is through the Telnet console, web console (HTTP/HTTPS) or Windows utility, and the device supports SNMPv1/v2c monitoring with trap or email alerts.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
