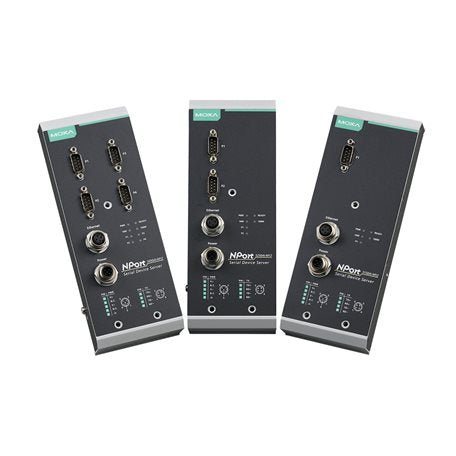

Moxa NPort-5150AI-M12 | NPort 5150AI-M12 1-Port Serial Device Server, 12-48VDC

Authorised Moxa Partner

SKU:NPort 5150AI-M12

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NPort 5150AI-M12 is a railway-grade 1-port RS-232/422/485 serial device server that connects a serial device to an Ethernet network. It uses M12 connectors for both the 10/100 Ethernet port and the 12 to 48 VDC power input, and is rated for operation from -25 to 55°C, making it suited to rolling stock and other vibration-prone installations.

The DB9 serial port offers 2 kV isolation and supports RS-485 automatic data direction control. Real COM and TTY drivers for Windows, Linux and macOS, a standard TCP/IP interface and speedy 3-step web-based configuration make it simple to bring legacy serial equipment onto an IP network. This variant has a single serial port and no PCB conformal coating.

Features

- Speedy 3-step web-based configuration
- COM port grouping and UDP multicast applications
- Real COM and TTY drivers for Windows, Linux and macOS
- Standard TCP/IP interface
- M12 connectors for Ethernet and power suit railway and vibration-prone installations
- Configuration via Web Console (HTTP/HTTPS), Windows Utility, Device Search Utility, MCC Tool or Telnet
- Management support including SNMPv1/v2c, DHCP, DNS, LLDP and SMTP
- ADDC automatic data direction control for RS-485

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232/422/485 serial port, DB9 male
- 1 x 10/100BaseT(X) Ethernet port, M12 D-coded 4-pin female
- Power connector: M12 A-coded 5-pin
- Input voltage: 12 to 48 VDC, 310 mA @ 12 VDC
- Serial isolation: 2 kV
- Baudrate: 50 bps up to 230.4k bps
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: RTS/CTS, DTR/DSR (RS-232 only), XON/XOFF
- Operating temperature: -25 to 55°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Dimensions: 80 x 216.6 x 52.9 mm
- Weight: 686 g
- MTBF: 789,341 hrs
- Standards: EN 50155 (24/48 VDC), EN 50121-4, EN 55032/35, FCC Part 15B Class A, UL 60950-1
- Green product: RoHS, CRoHS, WEEE

FAQs

Q: Which serial standards does the NPort 5150AI-M12 support?
A: Its single DB9 male serial port supports RS-232, RS-422 and RS-485, with automatic data direction control for RS-485.

Q: What power input does it require?
A: It accepts 12 to 48 VDC through an M12 A-coded 5-pin connector, and is EN 50155 compliant on 24/48 VDC.

Q: What operating temperature range is supported?
A: This model operates from -25 to 55°C. It does not have PCB conformal coating.

Q: Which operating systems are supported by the drivers?
A: Real COM and TTY drivers are available for Windows, Linux and macOS.

Q: What Ethernet connector does it use?
A: One 10/100BaseT(X) port with an M12 D-coded 4-pin female connector, designed for vibration-prone environments.

Q: How can the device be configured?
A: Use the web console (HTTP/HTTPS), Windows utility, Device Search Utility, MCC Tool or Telnet console.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
