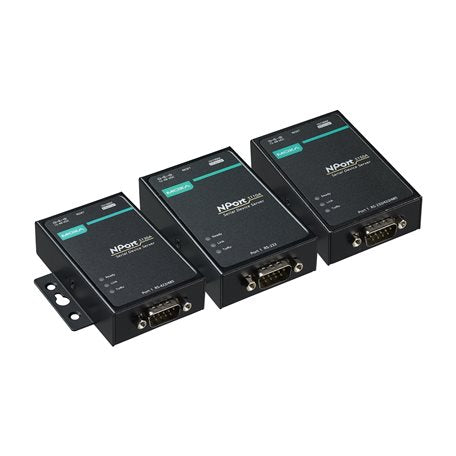

• Moxa NPort 5150A black 1-port RS-232/422/485 device server rear view
1 1

Moxa

Moxa NPort-5150A | NPort 5100A 1-Port RS-232/422/485 Serial Device Server, 0-60C

Moxa NPort-5150A | NPort 5100A 1-Port RS-232/422/485 Serial Device Server, 0-60C

Authorised Moxa Partner

NPort 5150A

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NPort 5150A is a 1-port RS-232/422/485 serial device server that connects a serial device to an Ethernet network. Rated for 0 to 60°C standard-temperature operation, it suits indoor control cabinets, plant rooms and equipment racks where legacy serial equipment such as PLCs, meters, sensors and card readers needs network access.

The NPort 5150A supports operation modes including Real COM, TCP Server, TCP Client, UDP, Reverse Telnet and RFC2217, with baudrates up to 230.4 kbps. A built-in watchdog timer, automatic data direction control for RS-485 and a metal housing support dependable day-to-day operation, and it accepts a wide 12 to 48 VDC power input. It can be installed on a desktop, on a wall, or on a DIN rail with the optional kit.

Features

- Supports RS-232, RS-422 and RS-485 on a single DB9 port
- Multiple operation modes including Real COM, TCP Server, TCP Client, UDP, Reverse Telnet and RFC2217
- Automatic data direction control (ADDC) for RS-485
- Built-in watchdog timer for automatic reboot
- Metal housing with desktop, wall and DIN-rail mounting options
- Wide 12 to 48 VDC power input

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232/422/485 serial port, DB9 male
- Serial standards: RS-232, RS-422, RS-485
- Baudrate: 50 bps to 230.4 kbps
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF
- Operation modes: Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, UDP
- RS-485 pull high/low resistor: 1 kilo-ohm or 150 kilo-ohms
- RS-485 terminator: 120 ohms
- Power input: 12 to 48 VDC via power input jack
- Input current: 92.4 mA at 12 VDC
- Automatic reboot trigger: built-in watchdog timer
- Housing: metal
- Dimensions with ears: 75.2 x 80 x 22 mm
- Dimensions without ears: 52 x 80 x 22 mm
- Weight: 340 g
- Installation: desktop, wall mounting, DIN-rail mounting with optional kit
- Operating temperature: 0 to 60°C
- Storage temperature: -40 to 75°C
- Ambient relative humidity: 5 to 95% non-condensing
- Safety: UL 60950-1
- EMI: CISPR 32, FCC Part 15B Class A
- Green product: RoHS, CRoHS, WEEE
- MTBF: 2,231,530 hours

FAQs

Q: Which serial interfaces does the NPort 5150A support?
A: It supports RS-232, RS-422 and RS-485 on a single DB9 male port.

Q: What is the operating temperature range?
A: This model is rated for 0 to 60°C. It is the standard-temperature version, so it is intended for indoor or temperature-controlled installations.

Q: How is the NPort 5150A powered?
A: It takes a 12 to 48 VDC input through the power input jack, with an input current of 92.4 mA at 12 VDC.

Q: Can it be mounted on a DIN rail?
A: Yes, with the optional DIN-rail mounting kit. It can also be used on a desktop or mounted on a wall.

Q: What operation modes are available?
A: Modes include Real COM, TCP Server, TCP Client, UDP, Reverse Telnet, RFC2217, Pair Connection and Ethernet Modem, so it works with most host software and serial applications.

Q: Does it handle RS-485 data direction automatically?
A: Yes, it uses automatic data direction control (ADDC) for RS-485, and offers selectable 1 kilo-ohm or 150 kilo-ohm pull high/low resistors and a 120 ohm terminator.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
