Moxa NPort-5150 | NPort 5150 1-Port RS-232/422/485 Serial Device Server

Authorised Moxa Partner

SKU:NPort 5150

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

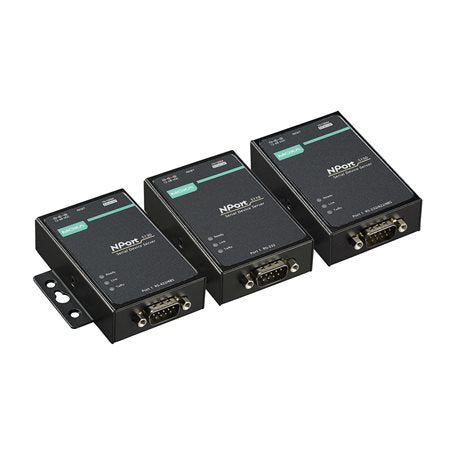

The Moxa NPort 5150 is a 1-port serial device server that connects an RS-232/422/485 serial device to a 10/100M Ethernet network, making it accessible and manageable over TCP/IP. This SKU is the 1-port model with a 0 to 55°C operating range and a 110V or 230V adapter kit, in a compact metal housing suited to desktop, wall or DIN-rail (optional kit) mounting.

It supports Real COM, TCP Server, TCP Client, UDP, Reverse Telnet, Pair Connection and Ethernet Modem operation modes, with Real COM and TTY drivers for Windows, Linux and macOS. Automatic Data Direction Control simplifies RS-485 deployments, and configuration is available through a Windows utility, web console, Telnet or serial console.

Features

- Compact device server for connecting RS-232/422/485 serial devices to Ethernet
- Real COM and TTY drivers for Windows, Linux and macOS, plus fixed TTY drivers for other UNIX systems
- Operation modes: Real COM, TCP Server, TCP Client, UDP, Reverse Telnet, Pair Connection and Ethernet Modem
- Automatic Data Direction Control (ADDC) for RS-485
- Configuration via Windows utility, web console, Telnet or serial console
- Android API support (Android 3.1.x and later)
- Support for virtual machine platforms and Arm-based platforms
- Metal housing with desktop, wall and DIN-rail (optional kit) mounting

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232/422/485 serial port, DB9 connector
- 1 x 10/100BaseT(X) Ethernet port (RJ45)
- Baudrate: 50 bps to 921.6 kbps
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF
- 1.5 kV built-in magnetic isolation
- Input voltage: 12 to 48 VDC, 200 mA @ 12 VDC
- Metal housing, 340 g
- Dimensions (with ears): 75.2 x 80 x 22 mm
- Dimensions (without ears): 52 x 80 x 22 mm
- Operating temperature: 0 to 55°C
- Storage temperature: -40 to 75°C
- Humidity: 5 to 95% (non-condensing)
- MTBF: 2,736,202 hrs (Telcordia TR/SR)

FAQs

Q: What serial interfaces does the NPort 5150 support?
A: It has a single serial port that supports RS-232, RS-422 and RS-485 (2-wire and 4-wire), selectable in configuration, with a baudrate range of 50 bps to 921.6 kbps.

Q: Which operation modes are available?
A: Real COM, TCP Server, TCP Client, UDP, Reverse Telnet, Pair Connection and Ethernet Modem modes are supported.

Q: Which operating systems are supported by the drivers?
A: Real COM and TTY drivers are available for Windows, Linux and macOS, with fixed TTY drivers for other UNIX systems. Android API support covers Android 3.1.x and later.

Q: How is the NPort 5150 configured?
A: It can be configured through the Windows utility, web console (HTTP), Telnet console or serial console.

Q: How can the NPort 5150 be mounted?
A: It can be used on a desktop, mounted on a wall using the ears, or mounted on a DIN-rail with the optional DIN-rail kit.

Q: What operating temperature range does this model cover?
A: This standard model is rated for 0 to 55°C operation.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
