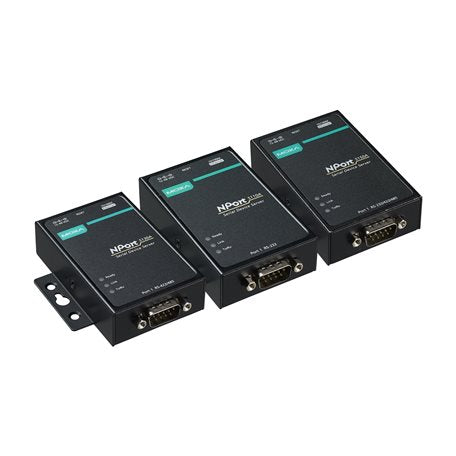

Moxa NPort-5130A-T | NPort 5100A 1-Port RS-422/485 Device Server, -40 to 75C

Authorised Moxa Partner

SKU:NPort 5130A-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NPort 5130A-T is a compact industrial serial device server that connects one RS-422/485 serial device to an Ethernet network. It pairs a DB9 male serial port with a 10/100BaseT(X) RJ45 port, and the wide-temperature -T model operates from -40 to 75C, making it suited to harsh factory floors, outdoor cabinets and field installations.

The metal housing supports desktop, DIN-rail and wall mounting, while the 12 to 48 VDC power input suits a wide range of industrial supplies. Serial baudrates run from 50 bps to 921.6 kbps, with automatic data direction control for RS-485 and built-in 1.5 kV magnetic isolation on the Ethernet port. SNMP support and a built-in watchdog timer help with monitoring and reliability.

Features

- Wide operating temperature range of -40 to 75C
- Metal housing for industrial environments
- Desktop, DIN-rail and wall mounting options
- SNMP support for monitoring over Ethernet
- Wide 12 to 48 VDC power input
- Automatic data direction control for RS-485
- Built-in watchdog timer for automatic reboot

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-422/485 serial port (DB9 male)
- 1 x 10/100BaseT(X) Ethernet port (RJ45)
- Baudrate: 50 bps to 921.6 kbps
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: XON/XOFF
- Input voltage: 12 to 48 VDC, 89.1 mA @ 12 VDC
- Magnetic isolation protection: 1.5 kV (built-in)
- Operating temperature: -40 to 75C
- Storage temperature: -40 to 75C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Metal housing, 52 x 80 x 22 mm (75.2 x 80 x 22 mm with ears)
- Weight: 340 g
- Safety: UL 60950-1; RoHS, CRoHS, WEEE compliant

FAQs

Q: What serial standards does the NPort 5130A-T support?
A: It supports RS-422, RS-485 4-wire and RS-485 2-wire on a single DB9 male serial port.

Q: What is the operating temperature range?
A: The -T model operates from -40 to 75C, suiting it to extreme industrial environments.

Q: How is the NPort 5130A-T powered?
A: It accepts a 12 to 48 VDC input through a power input jack, drawing 89.1 mA at 12 VDC.

Q: How can it be mounted?
A: The metal housing supports desktop, DIN-rail and wall mounting.

Q: What baudrates are supported?
A: Serial baudrates range from 50 bps to 921.6 kbps.

Q: Does it support RS-232?
A: The serial port is configured for RS-422/485 on this model. Choose an RS-232 capable NPort model if you need RS-232.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
