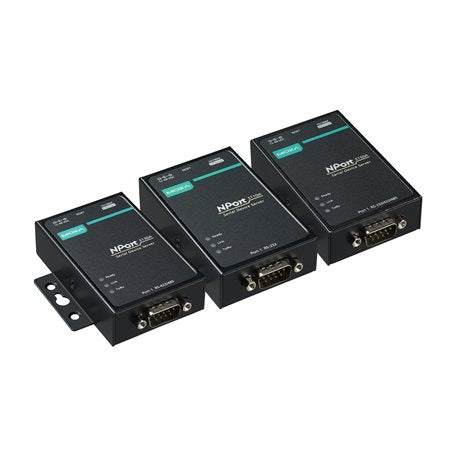

Moxa NPort-5130A | NPort 5100A 1-Port RS-422/485 Serial Device Server, 0-60°C

Authorised Moxa Partner

SKU:NPort 5130A

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NPort 5130A is a 1-port RS-422/485 serial device server that connects a serial device to a 10/100M Ethernet network. Part of the NPort 5100A series, it suits industrial and building automation applications where a single serial device needs network access, with a 0 to 60°C operating range and serial speeds up to 921.6 kbps.

The DB9 male serial port supports RS-422 and RS-485, with automatic data direction control for RS-485 and selectable pull high/low resistors and a 120 ohm terminator. Built-in surge immunity on the serial, Ethernet and power lines, a watchdog timer for automatic reboot and a compact metal housing make it a dependable choice for installations accepting 12 to 48 VDC power.

Features

- Built-in surge immunity on serial, Ethernet and power lines
- Automatic data direction control for RS-485
- Built-in watchdog timer for automatic reboot
- Selectable pull high/low resistors and 120 ohm terminator for RS-485
- Compact metal housing
- Wide 12 to 48 VDC power input

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-422/485 serial port, DB9 male
- 10/100M Ethernet
- Baudrate: 50 bps to 921.6 kbps
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- RS-485 data direction control: ADDC (automatic data direction control)
- Pull high/low resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
- Terminator for RS-485: 120 ohms
- Input voltage: 12 to 48 VDC via power input jack
- Input current: 89.1 mA @ 12 VDC
- Automatic reboot trigger: built-in WDT
- Housing: metal
- Dimensions (with ears): 75.2 x 80 x 22 mm
- Dimensions (without ears): 52 x 80 x 22 mm
- Weight: 340 g
- Operating temperature: 0 to 60°C
- Storage temperature: -40 to 75°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- Safety: UL 60950-1
- Green product: RoHS, CRoHS, WEEE
- MTBF: 2,231,530 hrs (Telcordia TR/SR)

FAQs

Q: What serial interfaces does the NPort 5130A support?
A: It has a single DB9 male serial port supporting RS-422 and RS-485, with speeds from 50 bps up to 921.6 kbps.

Q: What power input does it use?
A: It accepts 12 to 48 VDC through a power input jack, drawing 89.1 mA at 12 VDC.

Q: What is the operating temperature range?
A: The NPort 5130A operates from 0 to 60°C, making it suited to standard-temperature installations rather than extended-temperature environments.

Q: Does it need external termination for RS-485 networks?
A: No. It includes a selectable 120 ohm terminator and 1 kilo-ohm or 150 kilo-ohm pull high/low resistors, and uses automatic data direction control for RS-485.

Q: Does it protect against electrical surges?
A: Yes. It has built-in surge immunity on the serial, Ethernet and power lines, and a built-in watchdog timer reboots the unit automatically if it hangs.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
