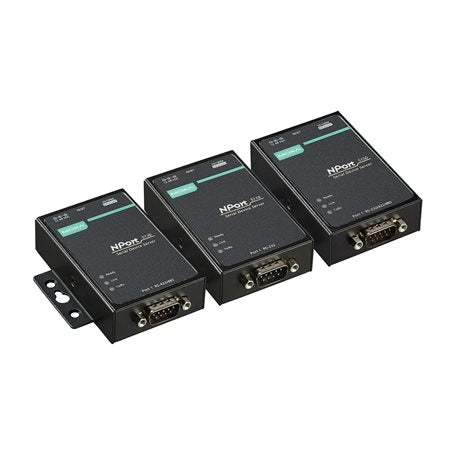

Moxa NPort-5130 | NPort 5100 1-Port RS-422/485 Serial Device Server, 12-48 VDC

Authorised Moxa Partner

SKU:NPort 5130

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NPort 5130 is a compact 1-port RS-422/485 serial device server that connects serial devices such as card readers and payment terminals to an IP-based Ethernet LAN. This version has a DB9 male serial connector, a 12 to 48 VDC power input and an operating temperature range of 0 to 55 C, in a durable metal housing.

It includes Real COM drivers for Windows, Real TTY drivers for Linux and fixed TTY drivers for macOS and other UNIX systems, plus TCP Server, TCP Client, UDP, Pair Connection, Reverse Telnet and Ethernet Modem operation modes. Configuration is available through a Windows utility, Telnet console or web console, and the unit supports desktop, wall or DIN-rail mounting with the optional kit.

Features

- Compact size suited to card readers and payment terminals
- Real COM drivers for Windows and Real TTY drivers for Linux
- Fixed TTY drivers for macOS and other UNIX systems
- Operation modes: TCP Server, TCP Client, UDP, Pair Connection, Reverse Telnet and Ethernet Modem
- Automatic Data Direction Control (ADDC) for RS-485
- Configurable through Windows utility, Telnet console or web console
- Desktop, wall or DIN-rail mounting (optional kit)
- Android API and Arm-based platform support

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 1 x RS-422/485 serial port, DB9 male connector
- 1 x 10/100BaseT(X) Ethernet port, RJ45
- Baudrate: 50 bps to 921.6 kbps
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: XON/XOFF
- RS-485 pull high/low resistor: 1 kilo-ohm or 150 kilo-ohms
- Input voltage: 12 to 48 VDC, 200 mA @ 12 VDC
- Magnetic isolation protection: 1.5 kV
- Operating temperature: 0 to 55 C
- Storage temperature: -40 to 75 C
- Humidity: 5 to 95% non-condensing
- Metal housing, 340 g
- Dimensions: 52 x 80 x 22 mm (75.2 x 80 x 22 mm with ears)
- MTBF: 2,836,863 hrs (Telcordia TR/SR)
- Safety: EN 62368-1, IEC 62368-1, UL 60950-1

FAQs

Q: Which serial standards does the NPort 5130 support?
A: It has one serial port supporting RS-422, RS-485 2-wire and RS-485 4-wire, with a DB9 male connector.

Q: What power input does this model use?
A: It runs from a 12 to 48 VDC input via a power input jack, drawing 200 mA at 12 VDC.

Q: Which operating systems are supported for virtual COM or TTY ports?
A: Real COM drivers are available for Windows, Real TTY drivers for Linux, and fixed TTY drivers for macOS and other UNIX systems.

Q: Can the NPort 5130 be DIN-rail mounted?
A: Yes, DIN-rail mounting is available with the optional mounting kit. The unit can also be used on a desktop or mounted on a wall.

Q: What operation modes are available?
A: Modes include Real COM, TCP Server, TCP Client, UDP, Pair Connection, Reverse Telnet and Ethernet Modem.

Q: How is the device configured?
A: Configuration can be done with the Windows utility, a Telnet console or the web console over HTTP.
