Moxa NPort-5110A-T | NPort 5110A-T 1-Port RS-232 Serial Device Server, -40 to 75°C

Authorised Moxa Partner

SKU:NPort 5110A-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

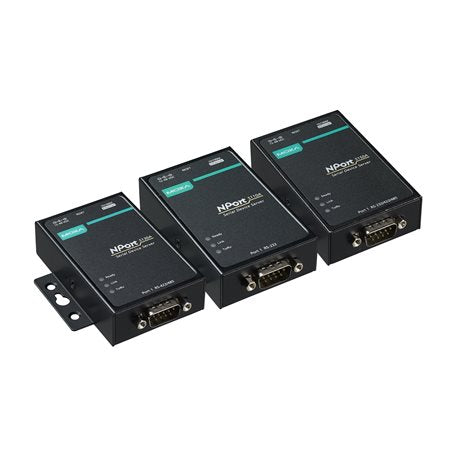

The NPort 5110A-T is a compact 1-port RS-232 serial device server that connects serial equipment to an Ethernet LAN. It pairs a DB9 male serial port with a 10/100BaseT(X) RJ45 port, and the wide-temperature -T version operates from -40 to 75°C, making it suited to industrial automation, remote monitoring and other harsh-environment serial-to-Ethernet deployments.

Operation modes include Real COM, Real TTY, TCP Server, TCP Client, UDP, Pair Connection, Reverse Telnet and RFC2217, with drivers for Windows, Linux and macOS and an Android API. Built-in surge protection, 1.5 kV magnetic isolation, a watchdog timer and HTTPS configuration with TLS 1.2 help keep legacy serial devices reliably and securely networked, all in a compact metal housing.

Features

- Surge protection on the serial, Ethernet and power inputs
- Wide -40 to 75°C operating temperature for harsh environments
- Energy-efficient design with 82.5 mA input current at 12 VDC
- Real COM and Real TTY drivers for Windows, Linux and macOS, plus Android API
- Operation modes include TCP Server, TCP Client, UDP, Pair Connection, Reverse Telnet and RFC2217
- Built-in watchdog timer for automatic reboot
- HTTPS and TLS 1.2 secure configuration
- Compact metal housing for industrial installations

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 1 x RS-232 serial port (DB9 male)
- 1 x 10/100BaseT(X) Ethernet port (RJ45)
- Serial baudrate: 50 bps to 921.6 kbps
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: RTS/CTS, DTR/DSR, XON/XOFF
- RS-232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Power input: 12 to 48 VDC via power jack
- Input current: 82.5 mA @ 12 VDC
- Magnetic isolation protection: 1.5 kV (built-in)
- Operating temperature: -40 to 75°C
- Humidity: 5 to 95% (non-condensing)
- Metal housing, 340 g
- Dimensions (without ears): 52 x 80 x 22 mm
- Dimensions (with ears): 75.2 x 80 x 22 mm
- MTBF: 2,231,530 hrs (Telcordia TR/SR)
- Safety: UL 60950-1
- 5-year warranty

FAQs

Q: What serial interface does the NPort 5110A-T support?
A: It provides one RS-232 serial port on a DB9 male connector, supporting TxD, RxD, RTS, CTS, DTR, DSR, DCD and GND signals at baudrates from 50 bps to 921.6 kbps.

Q: What is the operating temperature range?
A: The -T model operates from -40 to 75°C, suiting outdoor cabinets, factory floors and other environments with extreme temperatures.

Q: How is the NPort 5110A-T powered?
A: It accepts 12 to 48 VDC through a power input jack and draws 82.5 mA at 12 VDC.

Q: Which operating systems and modes does it support?
A: Real COM and Real TTY drivers are available for Windows, Linux and macOS, and an Android API is provided. Socket modes include TCP Server, TCP Client, UDP, Pair Connection, Reverse Telnet and RFC2217.

Q: Does it include surge and isolation protection?
A: Yes. It has built-in surge protection on the serial, Ethernet and power inputs, plus 1.5 kV magnetic isolation on the Ethernet port.

Q: How is it configured securely?
A: It can be configured over HTTPS using TLS 1.2, or through a serial console, and supports SNMPv1/v2c for monitoring.
