Moxa NPort-5110A | NPort 5110A 1-Port RS-232 Serial Device Server, 10/100M

Authorised Moxa Partner

SKU:NPort 5110A

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

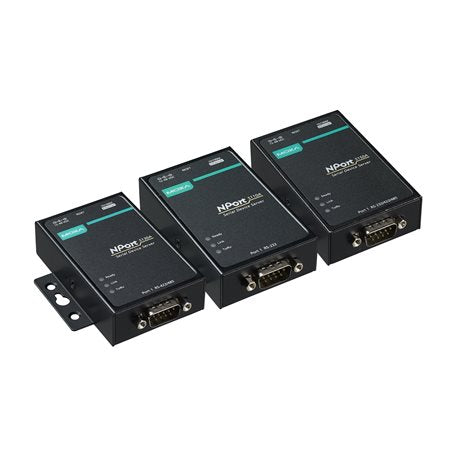

The NPort 5110A is a compact 1-port RS-232 serial device server that connects a serial device to a 10/100M Ethernet network. It is the standard temperature model, rated for 0 to 60°C, and provides a DB9 male serial connector with baudrates from 50 bps to 921.6 kbps. Built on Moxa's MiiNe Arm-based serial-to-Ethernet SoC, it uses at least 50% less power than the previous generation, drawing under 1 W.

The NPort 5110A supports a wide range of operation modes, including Real COM, TCP Server, TCP Client, UDP, Pair Connection, Reverse Telnet, RFC2217 and Ethernet Modem. It runs from a 12 to 48 VDC input via a power input jack and includes a built-in watchdog timer that triggers an automatic reboot, making it well suited to connecting legacy serial equipment to IP networks.

Features

- MiiNe Arm-based serial-to-Ethernet SoC with embedded RAM and Flash
- At least 50% lower power consumption than the previous generation
- Supports Real COM, TCP Server, TCP Client, UDP, Pair Connection, Reverse Telnet, RFC2217 and Ethernet Modem modes
- Built-in watchdog timer for automatic reboot
- Wide 12 to 48 VDC input range
- Compact single-port design for simple serial-to-network conversion

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232 serial port, DB9 male connector
- Serial standard: RS-232
- Baudrate: 50 bps to 921.6 kbps
- Ethernet: 10/100 Mbps
- Operation modes: Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, UDP
- Input voltage: 12 to 48 VDC via power input jack
- Input current: 82.5 mA @ 12 VDC
- Power consumption: under 1 W
- Automatic reboot trigger: built-in watchdog timer
- Operating temperature: 0 to 60°C (standard model)
- Package contents: 1 x NPort 5100A Series device server

FAQs

Q: What type of serial port does the NPort 5110A provide?
A: It provides one RS-232 serial port on a DB9 male connector, with baudrates from 50 bps to 921.6 kbps.

Q: What operating temperature range does this model support?
A: This is the standard temperature model, rated for 0 to 60°C.

Q: What power input does the NPort 5110A require?
A: It accepts 12 to 48 VDC through a power input jack and draws 82.5 mA at 12 VDC, with total power consumption under 1 W.

Q: Which operation modes are supported?
A: The NPort 5110A supports Real COM, TCP Server, TCP Client, UDP, Pair Connection, Reverse Telnet, RFC2217 and Ethernet Modem modes, or the port can be disabled.

Q: What network speed does the Ethernet port support?
A: It supports 10/100 Mbps Ethernet.

Q: Does the NPort 5110A recover automatically from a lock-up?
A: Yes. It includes a built-in watchdog timer that triggers an automatic reboot.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
