Moxa NPort 5110-T | NPort 5100 1-Port RS-232 Serial Device Server, -40 to 75°C

Authorised Moxa Partner

SKU:NPort 5110-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

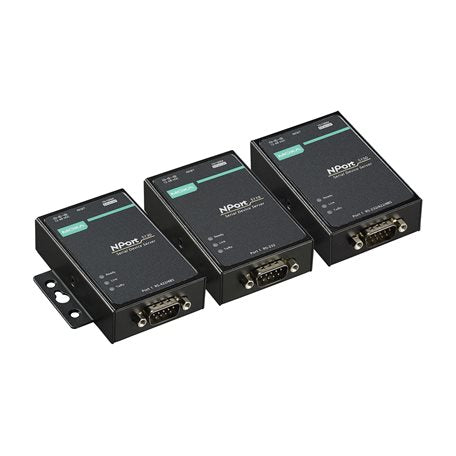

The NPort 5110-T is a compact 1-port RS-232 serial device server that connects a serial device to a 10/100 Ethernet network. This wide temperature variant is rated for operation from -40 to 75°C, making it suited to harsh industrial environments, outdoor cabinets and unheated enclosures where standard serial device servers would not survive.

It supports Real COM, Reverse Telnet, TCP Client, TCP Server, UDP, Pair Connection and Ethernet Modem operation modes, with Real COM and TTY drivers for Windows, Linux and macOS plus an Android API. The metal housing accepts a wide 12 to 48 VDC input and can be mounted on a desktop, a wall, or a DIN rail with the optional kit.

Features

- Compact 1-port RS-232 to Ethernet device server
- Extended -40 to 75°C operating temperature for harsh environments
- Operation modes: Real COM, Reverse Telnet, TCP Client, TCP Server, UDP, Pair Connection, Ethernet Modem
- Real COM and TTY drivers for Windows, Linux and macOS, plus an Android API
- Configuration via Windows utility, web console, Telnet or serial console
- Built-in 1.5 kV magnetic isolation on the Ethernet port
- Desktop, wall or DIN-rail mounting (DIN-rail kit optional)
- Metal housing with a wide 12 to 48 VDC power input

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232 serial port (DB9 male)
- 1 x 10/100BaseT(X) Ethernet port (RJ45)
- Baudrate: 110 bps to 230.4 kbps
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: RTS/CTS, DTR/DSR, XON/XOFF
- Ethernet magnetic isolation protection: 1.5 kV
- Input voltage: 12 to 48 VDC, 128.7 mA @ 12 VDC
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Humidity: 5 to 95% (non-condensing)
- Housing: metal
- Dimensions (without ears): 52 x 80 x 22 mm
- Weight: 340 g
- MTBF: 3,126,448 hrs

FAQs

Q: What serial standard does the NPort 5110-T support?
A: It provides a single RS-232 port on a DB9 male connector, with baudrates from 110 bps to 230.4 kbps.

Q: What operating temperature range does this model support?
A: The -T variant is rated for -40 to 75°C (-40 to 167°F), suitable for harsh and unheated environments.

Q: Which operating systems are supported by the drivers?
A: Real COM drivers cover Windows (including Windows 11 and Windows Server 2022), Linux Real TTY drivers cover kernel 2.4.x to 6.x, and fixed TTY drivers cover macOS and several UNIX systems. An Android API is also available for Android 3.1.x and later.

Q: How is the NPort 5110-T mounted?
A: It can be placed on a desktop, wall mounted using the built-in ears, or mounted on a DIN rail using the optional DIN-rail kit.

Q: What power input does it require?
A: It uses a single power input jack accepting 12 to 48 VDC, drawing 128.7 mA at 12 VDC.

Q: How do I configure the device?
A: Configuration is available through the Windows utility, a web console over HTTP, a Telnet console or the serial console.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
