Moxa NPort-5110 | NPort 5110 1-Port RS-232 Serial Device Server, DB9 Male

Authorised Moxa Partner

SKU:NPort 5110

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

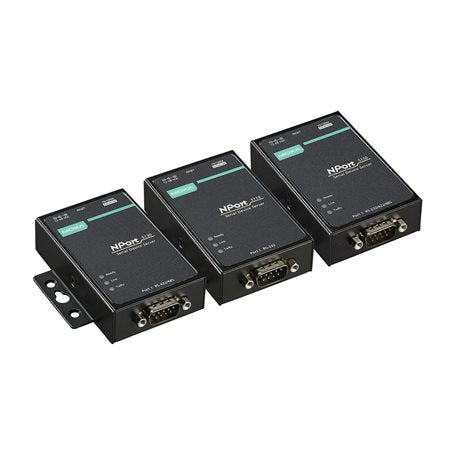

The Moxa NPort 5110 is a compact 1-port RS-232 serial device server that connects serial devices such as card readers and payment terminals to an IP-based Ethernet LAN. It provides a DB9 male serial port and a 10/100M RJ45 Ethernet port, with a standard 0 to 55°C operating temperature range suited to office, retail and light commercial deployments.

Support for Real COM and TTY drivers lets existing serial software communicate over the network without modification, while TCP Server, TCP Client, UDP, Pair Connection and Reverse Telnet modes cover a wide range of applications. The metal housing mounts on a desktop or wall, or on a DIN rail with the optional kit, and configuration is available through a Windows utility, web console or Telnet.

Features

- Compact size for easy installation
- Real COM and TTY drivers for Windows, Linux and macOS
- Standard TCP/IP interface with versatile operation modes
- Windows utility for configuring multiple device servers
- SNMP MIB-II support for network management
- Configuration by Telnet, web browser or Windows utility
- Email alerts and SNMP traps for troubleshooting
- Jumpers for termination and pull high/low resistor adjustment on the series

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x 10/100BaseT(X) Ethernet port (RJ45)
- 1 x RS-232 serial port (DB9 male)
- Baudrate: 110 bps to 230.4 kbps
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: RTS/CTS, DTR/DSR, XON/XOFF
- RS-232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Operation modes: Real COM, Reverse Telnet, TCP Server, TCP Client, UDP, Pair Connection, Ethernet Modem, Disabled
- Input voltage: 12 to 48 VDC via power input jack
- Input current: 128.7 mA @ 12 VDC
- 1.5 kV built-in magnetic isolation
- Metal housing; desktop, wall or DIN-rail mounting (optional kit)
- Dimensions: 52 x 80 x 22 mm (75.2 x 80 x 22 mm with ears)
- Weight: 340 g
- Operating temperature: 0 to 55°C
- Storage temperature: -40 to 75°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Safety: EN 62368-1, IEC 62368-1, UL 60950-1
- MTBF: 3,126,448 hrs (Telcordia)

FAQs

Q: What type of serial port does the NPort 5110 have?
A: It has a single RS-232 serial port on a DB9 male connector, supporting TxD, RxD, RTS, CTS, DTR, DSR, DCD and GND signals.

Q: Which operating systems are supported by the Real COM and TTY drivers?
A: Real COM and TTY drivers are available for Windows, Linux and macOS, allowing existing serial applications to communicate over Ethernet.

Q: What power input does the NPort 5110 require?
A: It uses a 12 to 48 VDC input through the power input jack, drawing 128.7 mA at 12 VDC.

Q: Can the NPort 5110 be mounted on a DIN rail?
A: Yes. It can be placed on a desktop or mounted on a wall, and DIN-rail mounting is available with the optional DIN-rail kit.

Q: How is the NPort 5110 configured?
A: Configuration is available through the Windows utility, a web console (HTTP), a Telnet console or a serial console.

Q: What temperature range does this model support?
A: This is the standard temperature model, operating from 0 to 55°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
