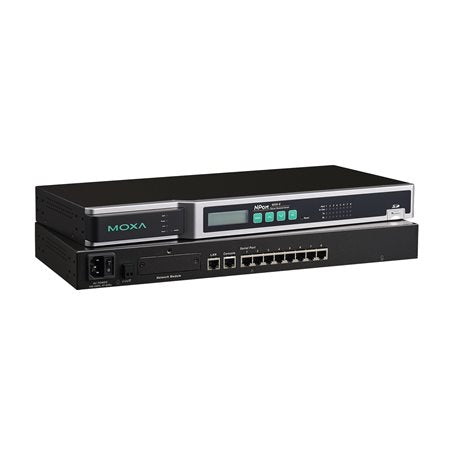

• Moxa NPort 205E ethernet switch with display and ports, NM-FX02-M-SC module
1 1

Moxa

Moxa NM-FX02-M-SC | NPort 6000 Fibre Expansion Module, 2x 100BaseFX, Multi-Mode SC

Moxa NM-FX02-M-SC | NPort 6000 Fibre Expansion Module, 2x 100BaseFX, Multi-Mode SC

Authorised Moxa Partner

NM-FX02-M-SC

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa NM-FX02-M-SC is a fibre expansion module that adds two 100BaseFX multi-mode Ethernet ports with SC connectors to compatible Moxa NPort 6450 and 6650 terminal servers. It suits industrial and EMI-prone sites where copper runs are impractical, delivering multi-mode fibre links of up to 4 km over OM1 50/125 µm cable. This standard temperature model needs no SFPs, keeping fibre connectivity simple and robust.

The module plugs directly into supported NPort 6000 series units, including the NPort 6610, extending the host device with fibre uplinks while keeping the existing serial-to-Ethernet configuration. A wide-temperature variant is available separately as NM-FX02-M-SC-T for harsher environments.

Features

- Adds fibre Ethernet ports to NPort 6000 series terminal servers
- Multi-mode SC connectors for simple, robust fibre links
- No SFPs required
- Suited to EMI-prone or long-run installations

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 100BaseFX ports, multi-mode, SC connector
- Fibre type: OM1 50/125 µm multi-mode, typical distance 4 km
- Wavelength: 1300 nm typical (multi-mode)
- TX range: -10 to -20 dBm
- RX range: -3 to -32 dBm
- Link budget: 12 dB, dispersion penalty: 3 dB
- Compatible with NPort 6450, 6650 and 6610 units
- Standard operating temperature model

FAQs

Q: Which Moxa devices is the NM-FX02-M-SC compatible with?
A: It is designed for the NPort 6450 and 6650 terminal servers, and is also compatible with the NPort 6610 units.

Q: What fibre type and distance does this module support?
A: It uses OM1 50/125 µm multi-mode fibre with SC connectors and supports typical distances of up to 4 km at 1300 nm.

Q: Do I need SFP transceivers with this module?
A: No. The two 100BaseFX SC ports are built into the module, so no SFPs are required.

Q: Is this the wide-temperature version?
A: No. This is the standard operating temperature model. The wide-temperature variant is NM-FX02-M-SC-T.

Q: What is the optical power budget?
A: TX range is -10 to -20 dBm and RX range is -3 to -32 dBm, giving a 12 dB link budget with a 3 dB dispersion penalty.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
