Moxa NE-4120S-T | NE-4100 RS-232 Device Server Module, 5-Pin Header, -40 to 75°C

Authorised Moxa Partner

SKU:NE-4120S-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

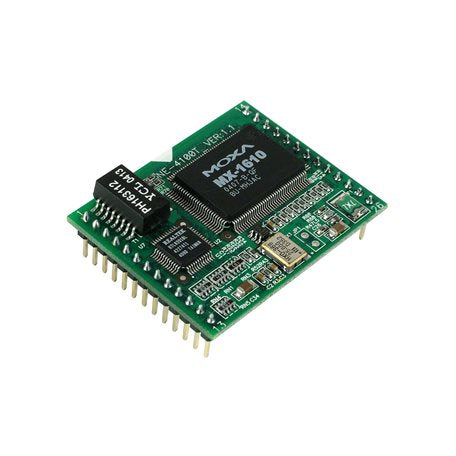

The NE-4120S-T is an NE-4100 series serial device server module that connects an RS-232 serial device to a 10/100 Mbps Ethernet network through a 5-pin Ethernet pin header. Built as a ready-to-go embedded module, it is suited to OEMs and integrators adding network connectivity to serial equipment, and the -T variant is rated for -40 to 75°C operation in demanding environments.

The module supports Real COM, TCP Client, TCP Server and UDP operation modes, with configuration through a web console, Windows utility, Telnet or serial console. Real COM and TTY drivers cover Windows, Linux and a range of other operating systems, and built-in 1.5 kV magnetic isolation protects the Ethernet port. Four software-configurable digital I/O channels and a TTL console port add flexibility for integration.

Features

- Ready-to-go pin header module for embedding into serial devices
- Supports Real COM, TCP Client, TCP Server and UDP operation modes
- Configuration via web console, Windows utility, Telnet or serial console
- Real COM and TTY drivers for Windows, Linux and other operating systems
- Built-in 1.5 kV magnetic isolation on the Ethernet port
- Extended -40 to 75°C operating temperature range
- Management support including SNMPv1/v2c, DHCP client, SMTP and HTTP

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232 serial port plus 1 TTL console port
- 10/100BaseT(X) Ethernet via 5-pin pin header, auto MDI/MDI-X
- 16-bit MCU, 2 MB Flash, 1 MB SDRAM
- 4 x software-configurable DIO channels
- Baudrate 110 bps to 230.4 kbps
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, DTR/DSR, XON/XOFF
- RS-232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Operation modes: Real COM, TCP Client, TCP Server, UDP
- Input voltage 5 VDC, 290 mA
- 1.5 kV built-in magnetic isolation on Ethernet port
- Operating temperature -40 to 75°C
- Humidity 5 to 95% non-condensing
- Dimensions 57 x 40 mm, weight 20 g
- MTBF 289,573 hrs (Telcordia SR332)
- Compliance: CISPR 32, FCC Part 15B Class A, EN 55032/24, RoHS, CRoHS, WEEE

FAQs

Q: What serial interface does the NE-4120S-T provide?
A: It provides one RS-232 serial port with TxD, RxD, RTS, CTS, DTR, DSR, DCD and GND signals, plus a TTL console port for configuration.

Q: How does the module connect to the Ethernet network?
A: It uses a 5-pin Ethernet pin header supporting 10/100BaseT(X) with auto MDI/MDI-X, so a magnetics-equipped connector or carrier board is wired to the header.

Q: What operating temperature range is supported?
A: The -T variant is rated for -40 to 75°C operation.

Q: Which operation modes and drivers are available?
A: Real COM, TCP Client, TCP Server and UDP modes are supported. Real COM drivers are available for Windows and Linux Real TTY drivers for kernel 2.4.x through 5.x, with fixed TTY drivers for several other operating systems.

Q: What power supply does it require?
A: The module runs from 5 VDC and draws 290 mA.

Q: How is the module configured?
A: Configuration is available through the web console (HTTP), a Windows utility, a Telnet console or the serial console.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
