Moxa NE-4120A-T | NE-4100 Embedded Device Server Module, RS-422/485, -40 to 75°C

Authorised Moxa Partner

SKU:NE-4120A-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

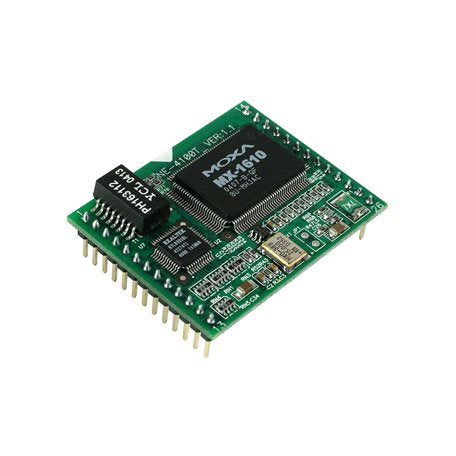

The NE-4120A-T is a compact NE-4100 series serial embedded device server module that connects an RS-422/485 serial device to a 10/100 Mbps Ethernet network through a 5-pin Ethernet pin header. This wide-temperature model operates from -40 to 75°C, making it suited to OEM integration in industrial equipment, automation and remote monitoring applications.

Measuring just 57 x 40 mm and drawing 290 mA from a single 5 VDC input, the module supports Real COM, TCP Server, TCP Client and UDP operation modes with baudrates up to 230.4 kbps. A Real COM driver is included for backward compatibility with legacy serial software, and network management options include DHCP, BootP, static IP, SNMP and email alerts.

Features

- 10/100 Mbps Ethernet interface for serial-to-network connectivity
- Supports baudrates up to 230.4 kbps
- Real COM, TCP Server, TCP Client and UDP operation modes
- DHCP, BootP, static IP and ARP support
- SNMP and email alerts for event trapping and notifications
- Compact 57 x 40 mm form factor, half the size of a credit card
- Low power consumption of 1.5 W from a single 5 V input
- Real COM driver included for backward compatibility with legacy software
- Wide operating temperature range of -40 to 75°C

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-422/485 serial port plus 1 TTL console port
- Ethernet: 10/100BaseT(X), Auto MDI/MDI-X, 5-pin Ethernet pin header
- Ethernet standards: IEEE 802.3, 802.3u, 802.3x
- Built-in 1.5 kV magnetic isolation protection
- Baudrate: 110 bps to 230.4 kbps
- Data bits: 5, 6, 7, 8
- CPU: 16-bit MCU, 2 MB Flash, 1 MB SDRAM
- 4 software-configurable DIO channels
- Operation modes: Real COM, TCP Client, TCP Server, UDP
- Input voltage: 5 VDC, 290 mA
- Dimensions: 57 x 40 mm, weight 20 g
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 60°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- MTBF: 289,573 hrs (Telcordia SR332)

FAQs

Q: What serial interfaces does the NE-4120A-T support?
A: It provides one RS-422/485 serial port, supporting RS-422, RS-485 4-wire and RS-485 2-wire signalling, plus a TTL console port.

Q: What operating temperature range does this model support?
A: The NE-4120A-T is the wide-temperature model and operates from -40 to 75°C.

Q: How does the module connect to the Ethernet network?
A: It uses a 5-pin Ethernet pin header supporting 10/100BaseT(X) with Auto MDI/MDI-X, so it is designed to be integrated onto a host board.

Q: What power supply does it need?
A: It runs from a single 5 VDC input and draws 290 mA, around 1.5 W.

Q: Which operation modes are supported?
A: Real COM, TCP Server, TCP Client and UDP modes are supported, and a Real COM driver is included for legacy software compatibility.

Q: What maximum serial baudrate is supported?
A: Baudrates range from 110 bps up to 230.4 kbps.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
