Moxa NE-4120A | NE-4100 Embedded Device Server Module, RS-422/485, 5-Pin Header

Authorised Moxa Partner

SKU:NE-4120A

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

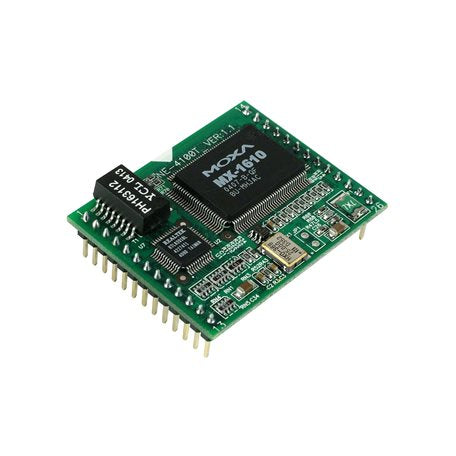

The Moxa NE-4120A is an embedded serial device server module that connects an RS-422/485 serial device to a 10/100 Mbps Ethernet network. Built on the NE-4100 Series pin-header form factor with a 5-pin Ethernet header, it suits OEM and system integrators adding network connectivity to serial equipment without a redesign. This variant supports RS-422, RS-485 4-wire and RS-485 2-wire signalling and operates across the standard 0 to 55°C temperature range.

The module supports Real COM, TCP Client, TCP Server and UDP operation modes, with baudrates from 110 bps to 230.4 kbps and full flow control options. Configuration is available through a web console, Windows utility, Telnet or serial console, and SNMP and email alerts keep operators informed of device events. Four software-configurable DIO channels and built-in 1.5 kV magnetic isolation on the Ethernet port add flexibility for embedded designs.

Features

- Ready-to-go pin header module form factor for easy embedding
- Configuration via Web Console, Windows Utility, Telnet Console or Serial Console
- Management protocols include SNMPv1/v2c, DHCP Client, HTTP, SMTP, Telnet, ICMP and ARP
- SNMP and email alerts for event traps and notifications
- Windows Real COM drivers, Linux and fixed TTY drivers, Android API support
- Device Search Utility (DSU) for locating modules on the network

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: 16-bit MCU
- Flash: 2 MB; SDRAM: 1 MB
- Serial port: 1 x RS-422/RS-485 (plus 1 TTL console port)
- Serial signals: RS-422, RS-485 4-wire, RS-485 2-wire
- Baudrate: 110 bps to 230.4 kbps
- Data bits: 5/6/7/8; stop bits: 1/1.5/2; parity: None/Even/Odd/Space/Mark
- Flow control: None, RTS/CTS, DTR/DSR, XON/XOFF
- Ethernet: 1 x 10/100BaseT(X), Auto MDI/MDI-X, 5-pin pin header
- Magnetic isolation protection: 1.5 kV (built-in)
- Digital I/O: 4 x software-configurable DIO channels
- Operation modes: Real COM, TCP Client, TCP Server, UDP
- Dimensions: 57 x 40 mm; weight: 20 g
- Operating temperature: 0 to 55°C; storage: -40 to 60°C
- Humidity: 5 to 95% (non-condensing)

FAQs

Q: What serial interface does the Moxa NE-4120A support?
A: It provides one RS-422/RS-485 serial port supporting RS-422, RS-485 4-wire and RS-485 2-wire signalling, plus a TTL console port.

Q: What Ethernet connection does the NE-4120A use?
A: It has a 10/100BaseT(X) interface with Auto MDI/MDI-X on a 5-pin Ethernet pin header, with built-in 1.5 kV magnetic isolation.

Q: What operation modes are available?
A: The module supports Real COM, TCP Client, TCP Server and UDP modes, so it can work with both legacy COM-based software and socket-based applications.

Q: How is the NE-4120A configured?
A: Use the web console, Windows utility, Telnet console or serial console. The Device Search Utility helps locate modules on the network.

Q: What operating temperature range does this model cover?
A: The NE-4120A is rated for 0 to 55°C operation and -40 to 60°C storage, with 5 to 95% non-condensing humidity.

Q: Which operating systems have driver support?
A: Windows Real COM drivers, Linux and fixed TTY drivers, and an Android API are supported.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
