Moxa NE-4120-ST | NE-4100-ST Embedded Serial Device Server Starter Kit, RS-232, Pin-Header

Authorised Moxa Partner

SKU:NE-4120-ST

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NE-4120-ST is an NE-4100-ST Series embedded serial device server starter kit built for evaluating and developing with NE-4120S and NE-4120A pin-header 10/100 Mbps serial-to-Ethernet modules. It provides an RS-232 evaluation platform with an operating temperature range of 0 to 55°C, making it a practical tool for engineering teams prototyping networked serial applications.

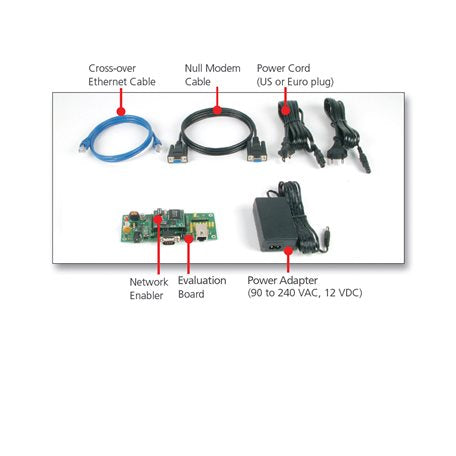

The kit ships with an evaluation board, Ethernet crossover cable, null modem serial cable, universal power adapter with EU and US power cords, and a software CD, so you can start testing straight away. Note that the embedded module itself is not included and must be purchased separately.

Features

- Evaluation board for testing modules and developing applications
- Starter kit for pin-header NE-4100 Series modules
- 10/100 Mbps Ethernet with low-power operation
- Includes cables, power adapter and software CD for immediate evaluation

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 10/100 Mbps Ethernet interface
- Serial standard: RS-232
- Serial baudrate up to 230.4 kbps
- Power consumption: 1.5 W with single +5 V input
- Compatible module form factor: pin header (5-pin dual-in-line)
- Compatible modules: NE-4120S, NE-4120A
- Operating temperature: 0 to 55°C
- Embedded module not included
- Package: evaluation board, Ethernet crossover cable, null modem serial cable, universal power adapter, EU and US power cords, document and software CD, quick installation guide, warranty card

FAQs

Q: Does the NE-4120-ST include an embedded module?
A: No. The kit contains the evaluation board and accessories only. A compatible NE-4100 Series module must be purchased separately.

Q: Which modules work with the NE-4120-ST starter kit?
A: It is designed for the pin-header NE-4120S and NE-4120A embedded serial device server modules.

Q: What serial standard does this kit support?
A: RS-232, with serial baudrates up to 230.4 kbps.

Q: What is included in the box?
A: An evaluation board, Ethernet crossover cable, null modem serial cable, universal power adapter with EU and US power cords, software CD, quick installation guide and warranty card.

Q: What is the operating temperature range?
A: 0 to 55°C, suited to lab and development environments.

Q: How much power does the kit require?
A: Power consumption is 1.5 W from a single +5 V input.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
