Moxa NE-4110S | NE-4100 Embedded Serial Device Server Module, RS-232, RJ45

Authorised Moxa Partner

SKU:NE-4110S

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

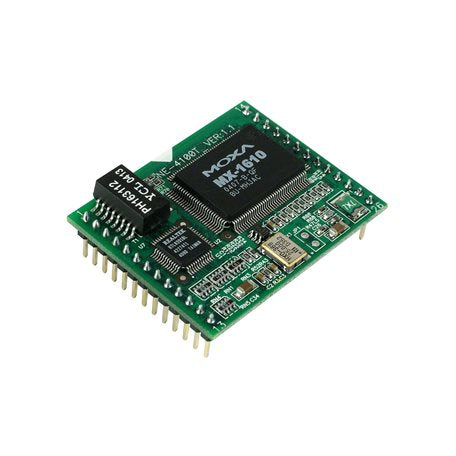

The NE-4110S is an embedded RS-232 serial device server module that connects serial devices to a 10/100 Mbps Ethernet network through an 8-pin RJ45 port. Part of the NE-4100 Series, it is about half the size of a credit card and ships as a ready-to-go pin header module, making it well suited to OEMs and integrators adding network connectivity to serial-based equipment.

The module supports Real COM, TCP Server, TCP Client and UDP operation modes, with Windows Real COM and Linux Real TTY drivers available. Configuration is flexible, via web console, Windows utility, Telnet or serial console, and SNMP and email alerts help with remote monitoring of deployed devices.

Features

- Operation modes: Real COM, TCP Server, TCP Client and UDP
- Supports DHCP, BootP, Static IP and ARP
- SNMP traps and email alerts for events such as cold/warm start, authentication failure, DSR/DCD change, IP change and password change
- Configuration via Web Console (HTTP), Windows Utility, Telnet Console or Serial Console
- Management protocols: SNMPv1/v2c, SMTP, DSU (Device Search Utility), ICMP, Telnet
- Windows Real COM drivers, Linux Real TTY drivers, and Fixed TTY drivers for several UNIX/RTOS platforms
- Compact pin header module, half the size of a credit card

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x 10/100BaseT(X) Ethernet port, Auto MDI/MDI-X, 8-pin RJ45
- Built-in 1.5 kV magnetic isolation protection
- Serial standard: RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND)
- 2 serial ports (1 serial interface, 1 TTL console port)
- Baudrate: 110 bps to 230.4 kbps
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, DTR/DSR, XON/XOFF
- 16-bit MCU, 2 MB Flash, 1 MB SDRAM
- 4 software-configurable DIO channels
- Input voltage: 5 VDC, 290 mA (approx. 1.5 W)
- Dimensions: 57 x 40 mm
- Operating temperature: 0 to 55°C

FAQs

Q: What serial interface does the NE-4110S support?
A: The NE-4110S supports RS-232 with TxD, RxD, RTS, CTS, DTR, DSR, DCD and GND signals, plus a TTL console port.

Q: What Ethernet connection does the NE-4110S use?
A: It has one 10/100BaseT(X) Ethernet port with Auto MDI/MDI-X on an 8-pin RJ45 connector, with built-in 1.5 kV magnetic isolation.

Q: Which operation modes are supported?
A: Real COM, TCP Server, TCP Client and UDP modes are supported, so it can suit both legacy COM-port software and socket-based applications.

Q: How is the NE-4110S powered?
A: It runs from a 5 VDC input and draws approximately 290 mA, around 1.5 W.

Q: How do I configure the module?
A: Configuration is available via the web console (HTTP), a Windows utility, a Telnet console or the serial console.

Q: Which operating systems have driver support?
A: Windows Real COM drivers and Linux Real TTY drivers are available, along with Fixed TTY drivers for several UNIX and RTOS platforms.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
