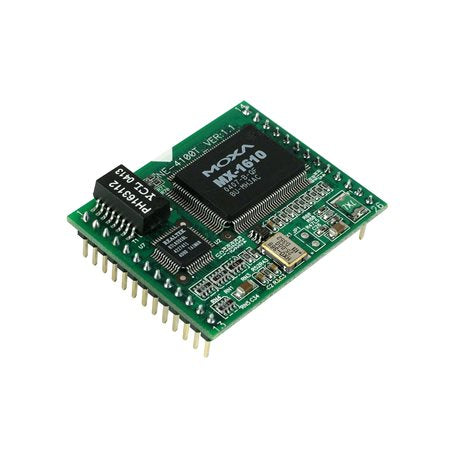

• Moxa NE-4110A-T green PCB with black ICs and silver pins, NE-4100 series
1 1

Moxa

Moxa NE-4110A-T | NE-4100 Embedded Serial Device Server Module, RS-422/485

Moxa NE-4110A-T | NE-4100 Embedded Serial Device Server Module, RS-422/485

Authorised Moxa Partner

NE-4110A-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NE-4100 Series NE-4110A-T is an embedded serial-to-Ethernet device server module for RS-422/485 devices, with a 10/100BaseT(X) RJ45 port and a wide operating temperature range of -40 to 75°C. It is a ready-to-go pin header module measuring just 57 x 40 mm, making it well suited to building network connectivity directly into serial equipment such as industrial controllers, meters and instruments.

The module supports Real COM, TCP Server, TCP Client and UDP operation modes with baudrates from 110 bps to 230.4 kbps. A Real COM driver preserves compatibility with legacy serial software, and configuration is available through a web console, Windows utility, Telnet or serial console. It runs from a single 5 VDC input at 290 mA.

Features

- 10/100 Mbps Ethernet interface for adding network connectivity to serial devices
- Operation modes: Real COM, TCP Server, TCP Client and UDP
- Supports baudrates up to 230.4 kbps
- Supports DHCP, BootP, Static IP and ARP
- SNMP and email alerts for event trapping and notifications
- Compact 57 x 40 mm module, half the size of a credit card
- Low power consumption from a single +5 V input
- Real COM driver included for backward compatibility with legacy software
- Configuration via Web Console, Windows Utility, Telnet Console or Serial Console
- Linux Real TTY drivers and Android API support

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial interface: RS-422 / RS-485 (2-wire and 4-wire)
- Ethernet: 1 x 10/100BaseT(X) 8-pin RJ45, auto MDI/MDI-X
- Operating temperature: -40 to 75°C (wide temp)
- Baudrate: 110 bps to 230.4 kbps
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, DTR/DSR, XON/XOFF
- CPU: 16-bit MCU, 2 MB flash, 1 MB SDRAM
- Configurable DIO channels (by software): 4
- Magnetic isolation protection: 1.5 kV (built-in)
- Input: 5 VDC, 290 mA
- Dimensions: 57 x 40 mm (2.24 x 1.57 in)
- Weight: 40 g (0.09 lb)
- Form factor: Ready-to-go pin header module
- Storage temperature: -40 to 60°C
- Humidity: 5 to 95% (non-condensing)
- EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A
- MTBF: 289,573 hrs (Telcordia SR332)

FAQs

Q: What serial standards does the NE-4110A-T support?
A: It supports RS-422 and RS-485, including both 2-wire and 4-wire RS-485 signalling.

Q: What is the operating temperature range?
A: The NE-4110A-T is a wide-temperature model rated for -40 to 75°C.

Q: How is the module powered?
A: It runs from a 5 VDC input and draws 290 mA, so it is typically powered from the host board or device it is embedded in.

Q: Which operation modes are available?
A: Real COM, TCP Server, TCP Client and UDP modes are supported, and a Real COM driver is provided for legacy software compatibility.

Q: How is the module configured?
A: Configuration is available through a web console (HTTP), a Windows utility, a Telnet console or a serial console.

Q: What operating systems are supported for the drivers?
A: Real TTY drivers are available for Linux kernels 2.4.x, 2.6.x, 3.x, 4.x and 5.x, and an Android API supports Android 3.1.x and later.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
