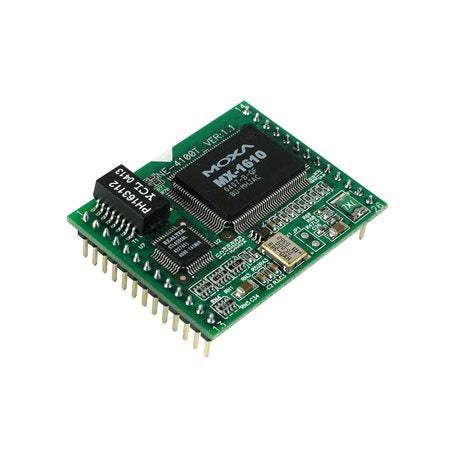

• Moxa NE-4110A green PCB with black ICs and silver pins, RS-422/485 module
1 1

Moxa

Moxa NE-4110A | NE-4100 Embedded Device Server Module, RS-422/485, 0-55°C

Moxa NE-4110A | NE-4100 Embedded Device Server Module, RS-422/485, 0-55°C

Authorised Moxa Partner

NE-4110A

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa NE-4110A is an embedded device server module that adds serial-to-Ethernet connectivity to RS-422/485 equipment. Supplied as a ready-to-go pin header module, it provides a single RS-422/485 serial port and a 10/100BaseT(X) RJ45 Ethernet port, making it straightforward for OEMs and system integrators to network-enable serial devices. This standard temperature model is rated for 0 to 55°C operation.

The module supports Real COM, TCP Client, TCP Server and UDP operation modes, with Windows Real COM, Linux Real TTY, fixed TTY and Android API driver support. Configuration is available through a web console, Windows utility, Telnet or serial console. Four software-configurable DIO channels and built-in 1.5 kV magnetic isolation on the Ethernet port suit compact, power-efficient embedded designs.

Features

- Compact, power-efficient embedded serial-to-Ethernet module that is easy to integrate
- Ready-to-go pin header form factor
- Supports Real COM, TCP Client, TCP Server and UDP operation modes
- Configuration via web console, Windows utility, Telnet or serial console
- Windows Real COM, Linux Real TTY, fixed TTY and Android API driver support
- 4 software-configurable DIO channels
- Built-in 1.5 kV magnetic isolation on the Ethernet port

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-422/485 serial port plus 1 TTL console port
- 1 x 10/100BaseT(X) RJ45 port, auto MDI/MDI-X
- Magnetic isolation protection: 1.5 kV built-in
- CPU: 16-bit MCU, 2 MB Flash, 1 MB SDRAM
- 4 software-configurable DIO channels
- Baudrate: 110 bps to 230.4 kbps
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, DTR/DSR, XON/XOFF
- Operation modes: Real COM, TCP Client, TCP Server, UDP
- Input voltage: 5 VDC, 290 mA
- Dimensions: 57 x 40 mm, weight 40 g
- Form factor: ready-to-go pin header module
- Operating temperature: 0 to 55°C
- Storage temperature: -40 to 60°C
- Ambient relative humidity: 5 to 95% non-condensing
- EMI: CISPR 32, FCC Part 15B Class A
- MTBF: 289,573 hrs (Telcordia SR332)

FAQs

Q: What serial interfaces does the Moxa NE-4110A support?
A: It provides one RS-422/485 serial port for the connected device, plus a TTL console port. RS-422, RS-485 4-wire and RS-485 2-wire signalling are supported.

Q: What operating temperature range does this model support?
A: The NE-4110A is the standard temperature model, rated for 0 to 55°C operation. The NE-4110A-T is the extended -40 to 75°C variant.

Q: What power supply does the NE-4110A require?
A: It runs from a 5 VDC input and draws 290 mA, powered through the host board via its pin header connection.

Q: Which operating systems and drivers are supported?
A: Real COM drivers are available for Windows from 95 through 10 and Windows Server editions, including Embedded CE and XP Embedded. Linux Real TTY drivers cover kernels 2.4.x to 5.x, and fixed TTY drivers are available for several UNIX platforms and Mac OS X. An Android API is also provided for Android 3.1.x and later.

Q: How is the NE-4110A configured?
A: You can configure it through the built-in web console (HTTP), a Windows utility, a Telnet console or the serial console. The Device Search Utility helps locate modules on the network.

Q: What operation modes are available?
A: The module supports Real COM, TCP Client, TCP Server and UDP modes, letting it work with both legacy COM-port software and socket-based applications.
