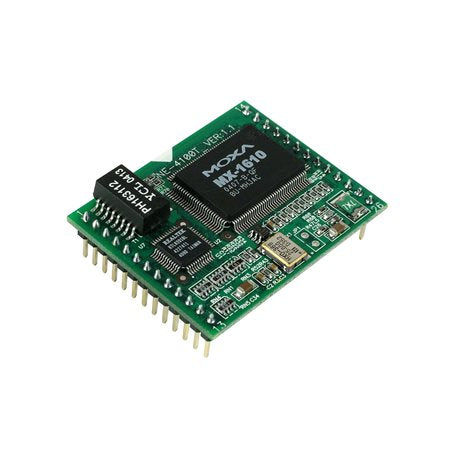

• Moxa NE-4100T-T module green PCB with black ICs and silver pins
1 1

Moxa

Moxa NE-4100T-T | NE-4100 Serial Device Server Module, TTL, DIL, -40 to 75°C

Moxa NE-4100T-T | NE-4100 Serial Device Server Module, TTL, DIL, -40 to 75°C

Authorised Moxa Partner

NE-4100T-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NE-4100T-T is a compact NE-4100 serial device server module that adds 10/100 Mbps Ethernet connectivity to TTL serial devices. It uses a 26-pin dual-in-line (DIL) drop-in package and is rated for the extended -40 to 75°C operating range, making it well suited to embedding in industrial equipment that needs to be networked.

The module offers one TTL serial port plus a TTL console port, four software-configurable DIO channels and built-in 1.5 kV magnetic isolation. It supports Real COM, TCP Server, TCP Client and UDP operation modes, with configuration via web console, Windows utility, Telnet or serial console, plus SNMP and email alerts for event notification.

Features

- 10/100 Mbps Ethernet interface for TTL serial devices
- Supports baudrates up to 230.4 kbps
- Choice of Real COM, TCP Server, TCP Client and UDP operation modes
- Supports DHCP, BootP, Static IP and ARP
- SNMP and email alerts for event trapping and notification
- Compact drop-in design, less than half the size of a credit card
- Low power consumption (1.5 W) from a single +5 V input
- Real COM drivers for Windows and Real TTY drivers for Linux

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16-bit MCU, 2 MB Flash, 1 MB SDRAM
- 1 x 10/100BaseT(X) Ethernet, auto MDI/MDI-X, 26-pin dual-in-line
- 1 x TTL serial port plus 1 x TTL console port
- Baudrate 110 bps to 230.4 kbps
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- 4 software-configurable DIO channels
- 1.5 kV built-in magnetic isolation
- Operation modes: Real COM, TCP Server, TCP Client, UDP
- Configuration: Web Console (HTTP), Windows Utility, Telnet Console, Serial Console
- Operating temperature -40 to 75°C
- Storage temperature -40 to 60°C
- Ambient relative humidity 5 to 95% (non-condensing)
- Dimensions 45 x 36 mm, weight 20 g
- EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A

FAQs

Q: What serial interface does the NE-4100T-T support?
A: It provides one TTL serial port for the serial interface and a second TTL port used as a console port. It is not an RS-232, RS-422 or RS-485 module.

Q: What package and size is the module?
A: It is a drop-in module in a 26-pin dual-in-line (DIL) package, measuring 45 x 36 mm and weighing 20 g.

Q: What temperature range does this model support?
A: The NE-4100T-T is rated for operation from -40 to 75°C, suiting it to harsh industrial environments.

Q: Which operation modes are available?
A: Real COM, TCP Server, TCP Client and UDP modes are supported. Windows Real COM drivers and Linux Real TTY drivers are available.

Q: What power input does it need?
A: It runs from a single +5 V input with low power consumption of 1.5 W.

Q: How is the module configured and managed?
A: Configuration is via web console (HTTP), Windows utility, Telnet console or serial console. Management protocols include SNMPv1/v2c, DHCP client, SMTP and the Device Search Utility.
