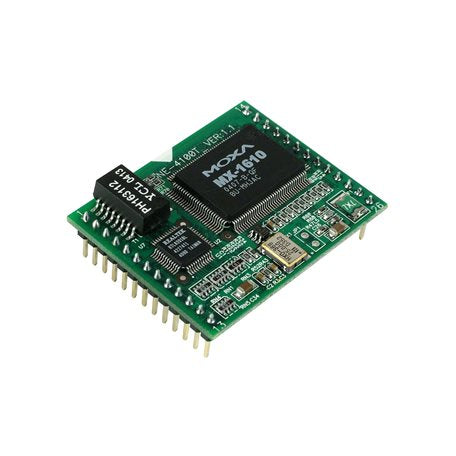

• Moxa NE-4100T module with green PCB, black ICs and silver pins
1 1

Moxa

Moxa NE-4100T | NE-4100 TTL Serial Device Server Module, 26-Pin DIL, 0-55°C

Moxa NE-4100T | NE-4100 TTL Serial Device Server Module, 26-Pin DIL, 0-55°C

Authorised Moxa Partner

NE-4100T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NE-4100T is an embedded TTL serial device server module from the NE-4100 series, designed to add 10/100 Mbps Ethernet connectivity to TTL-level serial devices. It uses a 26-pin dual-in-line drop-in form factor, measuring just 45 x 36 mm, and runs from a single 5 VDC supply, making it well suited to OEM and embedded designs that need to network-enable existing serial hardware. It is rated for 0 to 55°C operation.

The module supports Real COM, TCP Server, TCP Client and UDP operation modes with baudrates from 110 bps to 230.4 kbps. A 16-bit MCU with 2 MB flash and 1 MB SDRAM drives a full management stack including web console, Telnet, serial console, SNMP and DHCP, and four software-configurable DIO channels are available for simple I/O. Real COM drivers and Linux real TTY drivers keep legacy software working over the network.

Features

- 10/100 Mbps Ethernet interface for TTL serial devices
- Drop-in 26-pin dual-in-line module for easy embedded integration
- Operation modes: Real COM, TCP Server, TCP Client and UDP
- Supports DHCP client, BootP, static IP and ARP
- Configure via web console, Windows utility, Telnet or serial console
- SNMP and email alerts for event trapping and notifications
- Low power consumption from a single 5 V input
- Real COM driver included for legacy software compatibility
- Linux real TTY drivers and Android API support

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x TTL serial port plus 1 x TTL console port
- 10/100BaseT(X) Ethernet via 26-pin dual-in-line interface
- Baudrate: 110 bps to 230.4 kbps
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, DTR/DSR, XON/XOFF
- CPU: 16-bit MCU; 2 MB flash; 1 MB SDRAM
- 4 x software-configurable DIO channels
- 1.5 kV built-in magnetic isolation protection
- Input: 5 VDC, 290 mA
- Dimensions: 45 x 36 mm (1.77 x 1.42 in); weight 20 g
- Operating temperature: 0 to 55°C; storage -40 to 60°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Standards: IEEE 802.3, 802.3u, 802.3x; EMC EN 55032/24; FCC Part 15B Class A; RoHS, CRoHS, WEEE
- MTBF: 288,173 hrs (Telcordia SR332)

FAQs

Q: What type of serial interface does the NE-4100T provide?
A: It provides one TTL-level serial port plus one TTL console port. It is intended for direct connection to TTL serial devices rather than RS-232, RS-422 or RS-485 line levels.

Q: What is the form factor and how is it powered?
A: It is a 26-pin dual-in-line drop-in module measuring 45 x 36 mm and weighing 20 g. It runs from a single 5 VDC input and draws 290 mA.

Q: Which operation modes are supported?
A: Real COM, TCP Server, TCP Client and UDP modes are supported, so it can work with legacy COM-port software or with socket-based applications.

Q: What operating temperature range is this model rated for?
A: The NE-4100T is rated for 0 to 55°C operation, with a storage temperature range of -40 to 60°C.

Q: How is the module configured and managed?
A: Configuration is available through a web console (HTTP), Windows utility, Telnet console or serial console. Management protocols include SNMPv1/v2c, DHCP client, SMTP and ARP.

Q: Does it include general-purpose I/O?
A: Yes, it offers four software-configurable DIO channels that can be used for simple input and output tasks alongside the serial-to-Ethernet function.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
