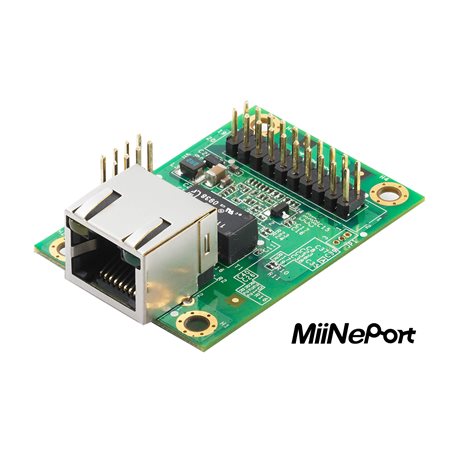

• Moxa MiiNePort E3-T green circuit board with silver ethernet port
1 1

Moxa

Moxa MiiNePort E3-T | MiiNePort E3 Embedded Device Server, TTL, -40 to 85°C

Moxa MiiNePort E3-T | MiiNePort E3 Embedded Device Server, TTL, -40 to 85°C

Authorised Moxa Partner

MiiNePort E3-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The MiiNePort E3-T is an embedded device server module that adds serial-to-Ethernet connectivity to TTL serial equipment. It uses a compact pin-header form factor with one TTL serial port and an 8-pin RJ45 10/100 Mbps Ethernet port, and is rated for -40 to 85°C operation. Built on Moxa's NetEZ technology, it lets equipment manufacturers network-enable serial devices with minimal integration effort.

The module supports Real COM, TCP Server, TCP Client, UDP, RFC2217 and Ethernet Modem operation modes, with IEEE 802.3af PoE pass-through and four software-configurable DIO channels. Real COM, Real TTY and fixed TTY drivers cover Windows, Linux, macOS and a range of UNIX platforms, and an Android API is available for mobile integration.

Features

- Compact pin-header embedded module for easy integration into serial equipment
- IEEE 802.3af compliant PoE pass-through
- Built on Moxa's second-generation MiiNe SoC
- NetEZ technology (EZPower, EZPage, SCM, AutoCFG) simplifies integration
- Multiple operation modes to suit different applications
- Low power consumption green design
- Built-in 1.5 kV magnetic isolation for the Ethernet port
- Wide -40 to 85°C operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x TTL serial port, 50 bps to 230.4 kbps
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, DTR/DSR, XON/XOFF
- TTL signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST, GND
- 1 x 10/100BaseT(X) 8-pin RJ45, auto MDI/MDI-X
- IEEE 802.3af PoE pass-through
- 1.5 kV built-in magnetic isolation on the Ethernet port
- 32-bit Arm core, 2 MB flash, 4 MB SDRAM
- 4 x software-configurable DIO channels
- Operation modes: Real COM, TCP Server, TCP Client, UDP, RFC2217, Ethernet Modem
- Configuration: Web console (HTTP), Windows utility
- Management: ARP, BOOTP, DSU, DHCP Client, IPv4, SMTP, SNMPv1, TCP/IP, Telnet, TFTP, UDP, ICMP
- Input voltage: 3.3 to 5 VDC, 157 mA @ 3.3 VDC
- Operating temperature: -40 to 85°C
- Storage temperature: -40 to 60°C
- Humidity: 5 to 95% (non-condensing)
- Dimensions: 35 x 52.5 x 18 mm
- Weight: 12 g
- MTBF: 5,696,350 hrs (Telcordia SR332)
- Certifications: RoHS, CRoHS, WEEE, FCC Part 15B Class B, CISPR 32, EN 55032/24

FAQs

Q: What serial interface does the MiiNePort E3-T support?
A: It provides one TTL-level serial port with TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST and GND signals, at baud rates from 50 bps to 230.4 kbps.

Q: What operation modes are available?
A: Real COM, TCP Server, TCP Client, UDP, RFC2217 and Ethernet Modem modes are supported.

Q: Does the module support PoE?
A: It supports IEEE 802.3af PoE pass-through on its 8-pin RJ45 10/100 Mbps Ethernet port.

Q: What operating temperature range does it support?
A: The module is rated for -40 to 85°C operating temperature, suitable for harsh industrial environments.

Q: What power supply does it require?
A: It runs from a 3.3 to 5 VDC input and draws 157 mA at 3.3 VDC.

Q: Which operating systems are supported by the drivers?
A: Real COM drivers cover Windows (including Windows 11, 10 and Windows Server editions), Real TTY drivers cover Linux kernels 2.4.x to 6.x, and fixed TTY drivers cover macOS and several UNIX platforms. An Android API is also available for Android 3.1.x and later.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
