Moxa MiiNePort E3-ST | MiiNePort E3 Serial Device Server Starter Kit, 10/100

Authorised Moxa Partner

SKU:MiiNePort E3-ST

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

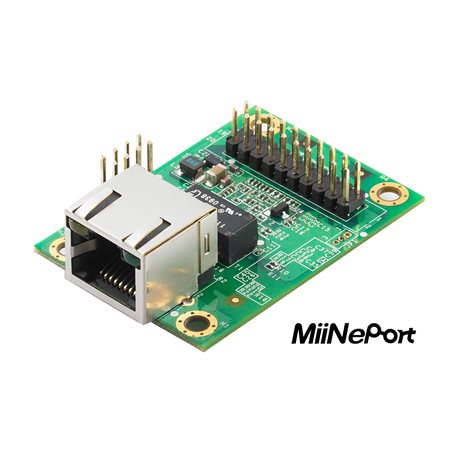

The MiiNePort E3-ST is a starter kit for the MiiNePort E3 series of 10/100 Mbps embedded serial-to-Ethernet modules, supplied with the standard MiiNePort E3 module included. It gives developers and OEM engineers a ready way to evaluate and prototype Ethernet connectivity for TTL serial devices before committing to a production design.

The module is built on a 32-bit Arm core with 2 MB Flash and 4 MB SDRAM, and provides one 10/100BaseT(X) RJ45 port, one TTL serial port up to 230.4 kbps and four software-configurable DIO channels. NetEZ functions, multiple operation modes and Real COM and TTY drivers for Windows, Linux and macOS simplify integration, while web console and Windows utility configuration keep setup straightforward.

Features

- NetEZ technology (EZPower, EZPage, Serial Command Mode, AutoCFG) simplifies integration
- Based on Moxa's second-generation MiiNe SoC supporting 10/100 Mbps Ethernet
- Multiple operation modes: Real COM, TCP Server, TCP Client, UDP, RFC2217, Ethernet Modem
- Real COM and TTY drivers for Windows, Linux, macOS and other operating systems
- Web console and Windows utility configuration
- Starter kit includes the MiiNePort E3 module for evaluation and development
- IEEE 802.3af PoE pass-through support

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x 10/100BaseT(X) Ethernet port, 8-pin RJ45, auto MDI/MDI-X
- 1 x TTL serial port, 50 bps to 230.4 kbps
- 32-bit Arm core CPU, 2 MB Flash, 4 MB SDRAM
- 4 x software-configurable DIO channels
- Serial signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST, GND
- Flow control: None, RTS/CTS, DTR/DSR, XON/XOFF
- Built-in 1.5 kV magnetic isolation protection
- IEEE 802.3af PoE pass-through support
- Input voltage 3.3 to 5 VDC, 157 mA @ 3.3 VDC
- Operating temperature 0 to 55°C
- Weight 89 g
- MTBF 5,696,350 hrs (Telcordia SR-332)
- 5-year warranty

FAQs

Q: Is the MiiNePort E3 module included in this kit?
A: Yes. The MiiNePort E3-ST starter kit is supplied with the standard MiiNePort E3 module included, ready for evaluation and prototyping.

Q: What type of serial interface does the module provide?
A: It provides one TTL-level serial port supporting 50 bps to 230.4 kbps, with TxD, RxD, RTS, CTS, DTR, DSR, DCD and reset signals.

Q: Which operation modes are supported?
A: Real COM, TCP Server, TCP Client, UDP, RFC2217 and Ethernet Modem modes are supported.

Q: Which operating systems have driver support?
A: Real COM drivers are available for Windows, Real TTY drivers for Linux, and fixed TTY drivers for macOS and several UNIX variants. An Android API is also provided.

Q: How is the module powered?
A: The module runs from 3.3 to 5 VDC and draws 157 mA at 3.3 VDC. It also supports IEEE 802.3af PoE pass-through.

Q: How is the module configured?
A: Configuration is done through the built-in web console over HTTP or the Windows utility.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
