Moxa MiiNePort E3-H-T | MiiNePort E3 TTL Embedded Device Server, Pin Header, -40-85°C

Authorised Moxa Partner

SKU:MiiNePort E3-H-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

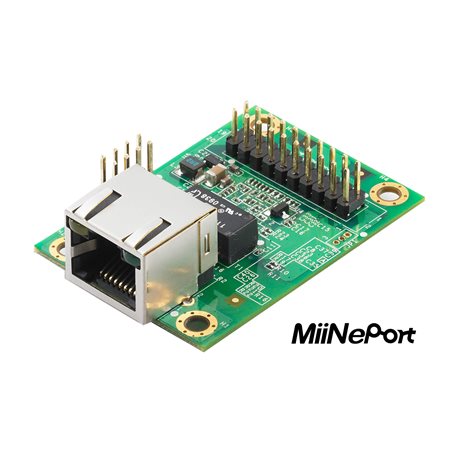

The Moxa MiiNePort E3-H-T is a compact embedded serial device server that adds 10/100 Mbps Ethernet connectivity to TTL-level serial devices. It uses a pin-header connector for direct board-level integration and is rated for -40 to 85°C operation, making it suited to industrial equipment, instrumentation and OEM designs that need network access for a serial port.

The module provides one TTL serial port with baud rates from 50 bps to 921.6 kbps, a single RJ45 Ethernet port with IEEE 802.3af PoE pass-through, and four software-configurable DIO channels. Operation modes include Real COM, TCP Server, TCP Client, UDP, RFC2217 and Ethernet Modem, and MiiNePort NetEZ functions simplify integration. It runs from a 3.3 to 5 VDC supply and can be configured through a web console or Windows utility.

Features

- IEEE 802.3af compliant PoE pass-through
- Built on Moxa's second-generation MiiNe SoC
- Operation modes include Real COM, TCP Server, TCP Client, UDP, RFC2217 and Ethernet Modem
- MiiNePort NetEZ technology (EZPower, EZPage, SCM, AutoCFG) simplifies integration
- Low power consumption green design
- Configuration via web console (HTTP) or Windows utility
- Android API support for Android 3.1.x and later
- Highly compact embedded module with pin-header connector

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x TTL serial port, 50 bps to 921.6 kbps
- 1 x 10/100BaseT(X) RJ45 port, auto MDI/MDI-X
- IEEE 802.3af PoE pass-through
- Pin header module
- 32-bit Arm core, 2 MB Flash, 4 MB SDRAM
- 4 x software-configurable DIO channels
- 1.5 kV built-in magnetic isolation
- Input voltage: 3.3 to 5 VDC, 157 mA @ 3.3 VDC
- Dimensions: 35 x 52.5 x 18 mm, weight 12 g
- Operating temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- MTBF: 5,696,350 hrs (Telcordia SR332)

FAQs

Q: What serial interface does the MiiNePort E3-H-T support?
A: It provides one TTL-level serial port with TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST and GND signals, supporting baud rates from 50 bps to 921.6 kbps.

Q: What power supply does it require?
A: It operates from a 3.3 to 5 VDC input and draws 157 mA at 3.3 VDC.

Q: Does it support Power over Ethernet?
A: Yes, the RJ45 port supports IEEE 802.3af PoE pass-through.

Q: What operation modes are available?
A: Real COM, TCP Server, TCP Client, UDP, RFC2217 and Ethernet Modem modes are supported.

Q: What is the operating temperature range?
A: This -T variant is rated for -40 to 85°C, suited to harsh industrial environments.

Q: How is the module configured?
A: It can be configured through the built-in web console (HTTP) or a Windows utility, and the Device Search Utility can locate it on the network.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
