Moxa MiiNePort E3-H-ST | MiiNePort E3-H Serial Device Server Starter Kit, 921.6kbps, PoE

Authorised Moxa Partner

SKU:MiiNePort E3-H-ST

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

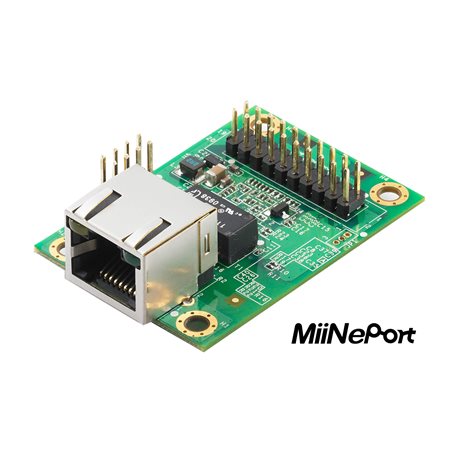

The MiiNePort E3-H-ST is a serial embedded device server module starter kit that converts a TTL serial port to 10/100 Ethernet, with IEEE 802.3af PoE pass-through on the RJ45 port. Part of the MiiNePort E3-H range, this starter kit includes the embedded module and supports serial speeds from 50 bps to 921.6 kbps, making it well suited to evaluating and prototyping network-enabled serial products.

The module runs a 32-bit Arm core with 2 MB flash and 4 MB SDRAM, and offers Real COM, TCP Server, TCP Client, UDP, RFC2217 and Ethernet Modem operation modes. Moxa NetEZ functions (EZPower, EZPage, SCM and AutoCFG) simplify integration, and drivers are available for Windows, Linux, macOS and Android. Built-in 1.5 kV magnetic isolation protects the Ethernet port.

Features

- Starter kit with the MiiNePort E3-H module included
- IEEE 802.3af PoE pass-through
- Moxa NetEZ technology (EZPower, EZPage, SCM, AutoCFG)
- Real COM, TCP Server/Client, UDP, RFC2217 and Ethernet Modem operation modes
- Drivers for Windows, Linux, macOS and Android
- Built-in 1.5 kV magnetic isolation on the Ethernet port
- Configuration via web console (HTTP) or Windows utility

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x 10/100BaseT(X) RJ45 port, auto MDI/MDI-X
- 1 x TTL serial port, 50 bps to 921.6 kbps
- IEEE 802.3af PoE pass-through
- CPU: 32-bit Arm core, 2 MB flash, 4 MB SDRAM
- 4 x software-configurable DIO channels
- Serial signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST, GND
- Data bits 5 to 8, stop bits 1, 1.5 or 2, parity None/Even/Odd/Space/Mark
- Flow control: None, RTS/CTS, DTR/DSR, XON/XOFF
- Magnetic isolation protection: 1.5 kV built-in
- Input voltage 3.3 to 5 VDC, 157 mA @ 3.3 VDC
- Operating temperature 0 to 55 C, storage -40 to 60 C
- Humidity 5 to 95% non-condensing
- Weight 89 g
- MTBF 5,696,350 hrs (Telcordia SR-332)
- Warranty: 5 years

FAQs

Q: What does the MiiNePort E3-H-ST starter kit include?
A: It includes the MiiNePort E3-H embedded serial device server module, intended for evaluating and developing network-enabled serial devices.

Q: Does this module support Power over Ethernet?
A: Yes. The E3-H features IEEE 802.3af PoE pass-through on its 10/100 RJ45 port.

Q: What serial interface and speeds does it support?
A: It provides one TTL serial port with baud rates from 50 bps to 921.6 kbps, with RTS/CTS, DTR/DSR and XON/XOFF flow control options.

Q: Which operation modes are available?
A: Real COM, TCP Server, TCP Client, UDP, RFC2217 and Ethernet Modem modes are supported.

Q: Which operating systems are supported by the drivers?
A: Real COM drivers cover Windows (including Windows 11 and 10), Linux Real TTY drivers cover kernels 2.4.x to 6.x, and fixed TTY drivers cover macOS and several UNIX variants. An Android API is also available for Android 3.1.x and later.

Q: What supply voltage does the module require?
A: It operates from 3.3 to 5 VDC and draws 157 mA at 3.3 VDC.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
