Moxa MiiNePort E2-T | MiiNePort E2 TTL Embedded Device Server, -40 to 85°C

Authorised Moxa Partner

SKU:MiiNePort E2-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

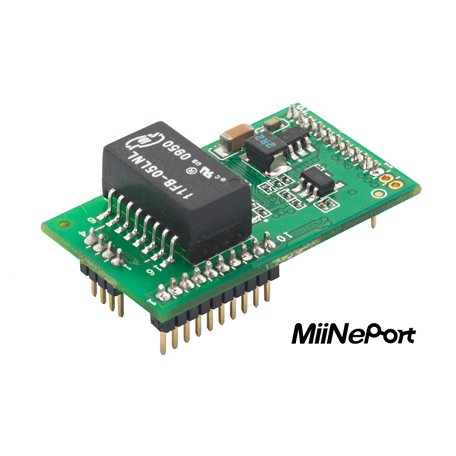

The MiiNePort E2-T is a compact MiiNePort E2 TTL embedded device server module that adds serial-to-Ethernet connectivity to existing serial equipment. This wide-temperature model operates from -40 to 85°C, has a TTL serial interface and no RJ45 connector, making it well suited to OEMs integrating Ethernet into industrial devices with minimal effort.

Built on Moxa's second-generation MiiNe SoC, it supports 10/100BaseT(X) Ethernet through a 4-pin pin header with built-in 1.5 kV magnetic isolation. Ready-to-use operation modes include Real COM, RFC2217, TCP Server and Client, UDP, Ethernet Modem and MCSC, with Real COM and TTY drivers for Windows, Linux and macOS plus an Android API. NetEZ tools simplify integration and configuration.

Features

- Compact embedded device server with no RJ45 connector, so it fits inside existing serial devices
- Built on Moxa's second-generation MiiNe SoC with low power consumption
- Cost-effective serial-to-Ethernet conversion with advanced UART technology
- NetEZ technology (EZPower, EZPage, SCM, AutoCFG, MCSC) for easy integration
- Operation modes: Real COM, RFC2217, TCP Server/Client, UDP, Ethernet Modem, MCSC
- Real COM/TTY drivers for Windows, Linux and macOS, plus an Android API
- Built-in 1.5 kV magnetic isolation on the Ethernet interface
- Wide operating temperature range of -40 to 85°C for harsh environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x TTL serial port
- Ethernet: 10/100BaseT(X) via 4-pin pin header (no RJ45), auto MDI/MDI-X
- CPU: 32-bit Arm core, 2 MB Flash, 4 MB SDRAM
- Baudrate: 50 bps to 230.4 kbps
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2; parity None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, DTR/DSR, XON/XOFF
- 4 x software-configurable DIO channels
- Input voltage: 3.3 to 5 VDC; input current 157 mA @ 3.3 VDC
- Operating temperature: -40 to 85°C (-40 to 185°F)
- Form factor: drop-in module, 29 x 17 x 12.6 mm, 5 g
- Magnetic isolation protection: 1.5 kV (built-in)
- Configuration: Web console (HTTP), Windows utility
- MTBF: 5,696,350 hrs (Telcordia SR-332)
- Certifications: EN 55032/24, FCC Part 15B Class B, RoHS, CRoHS, WEEE

FAQs

Q: Does the MiiNePort E2-T have an RJ45 port?
A: No. Ethernet is provided through a 4-pin pin header, which keeps the module small enough to embed inside a serial device.

Q: What serial interface does this model use?
A: It has one TTL serial port with TxD, RxD, RTS, CTS, DTR, DSR, DCD and a reset circuit signal, with baudrates from 50 bps to 230.4 kbps.

Q: What operating temperature range does it support?
A: This wide-temperature model is rated for -40 to 85°C (-40 to 185°F).

Q: What power supply does it need?
A: It runs from 3.3 to 5 VDC and draws 157 mA at 3.3 VDC.

Q: Which operating modes and drivers are supported?
A: Real COM, RFC2217, TCP Server, TCP Client, UDP, Ethernet Modem and MCSC modes are supported. Real COM and TTY drivers cover Windows, Linux and macOS, and an Android API is available.

Q: How is it configured?
A: Configuration is via a web console (HTTP) or a Windows utility, with the Device Search Utility available for locating units on the network.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
