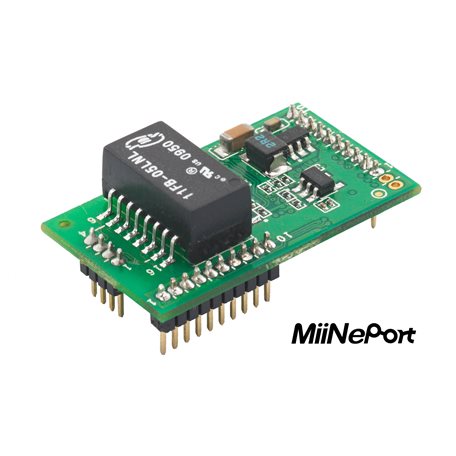

Moxa MiiNePort E2-ST | MiiNePort E2 Serial Device Server Starter Kit, TTL

Authorised Moxa Partner

SKU:MiiNePort E2-ST

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MiiNePort E2-ST is a starter kit for the MiiNePort E2 Series of embedded serial-to-Ethernet device server modules, with the module included. It gives manufacturers and engineers a ready platform to evaluate and add Ethernet connectivity to devices with a TTL serial interface, using a single 10/100BaseT(X) Ethernet port and one TTL serial port.

Built on a 32-bit Arm Core CPU, the module supports Real COM, RFC2217, TCP Client, TCP Server, UDP, Ethernet Modem and MCSC operation modes, with serial baudrates from 50 bps to 230.4 kbps. Configuration is handled through a web console or Windows utility, and Windows Real COM and Linux Real TTY drivers are available for host integration.

Features

- Starter kit with module included for evaluating embedded serial-to-Ethernet connectivity
- Compact drop-in module, only 29 x 17 x 12.6 mm
- EZPower supports 3.3 to 5 VDC system power input
- Low power consumption green design built on Moxa's second-generation MiiNe SoC
- Versatile operation modes: Real COM, TCP, UDP, RFC2217 and MCSC
- NetEZ technology converts a standard serial interface device into an Ethernet-enabled device
- Windows Real COM and Linux Real TTY drivers supported
- Management via ARP, BOOTP, DHCP Client, SNMPv1, SMTP, Telnet, TFTP and Device Search Utility

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x TTL serial port
- 1 x 10/100BaseT(X) Ethernet port, 4-pin pin header, auto MDI/MDI-X
- CPU: 32-bit Arm Core
- Baudrate: 50 bps to 230.4 kbps
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, DTR/DSR, XON/XOFF
- Operation modes: Real COM, RFC2217, TCP Client, TCP Server, UDP, Ethernet Modem, MCSC
- Configuration: Web Console (HTTP), Windows Utility
- Built-in 1.5 kV magnetic isolation protection
- Form factor: drop-in module, 77 g
- Operating temperature: 0 to 55°C (32 to 131°F)
- Storage temperature: -40 to 60°C (-40 to 140°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- MTBF: 5,696,350 hrs (Telcordia SR-332)
- Standards: EN 55032/24, CISPR 32, FCC Part 15B Class B, RoHS, CRoHS, WEEE

FAQs

Q: What is included in the MiiNePort E2-ST starter kit?
A: The E2-ST is the starter kit for the MiiNePort E2 Series and includes the embedded device server module, allowing you to evaluate and prototype Ethernet connectivity for TTL serial devices.

Q: What type of serial interface does the MiiNePort E2-ST use?
A: It provides one TTL serial port, suited to embedding in devices with a TTL-level serial interface rather than RS-232/422/485 line-level connections.

Q: Which operation modes are supported?
A: Real COM, RFC2217, TCP Client, TCP Server, UDP, Ethernet Modem and MCSC modes are supported.

Q: What serial baudrates and settings are supported?
A: Baudrates from 50 bps to 230.4 kbps, 5 to 8 data bits, 1, 1.5 or 2 stop bits, and None, Even, Odd, Space or Mark parity, with RTS/CTS, DTR/DSR or XON/XOFF flow control.

Q: Which operating systems have driver support?
A: Windows Real COM drivers cover Windows 95 through Windows 10 and Server 2008 R2 to 2019, plus Embedded CE 5.0/6.0 and XP Embedded. Linux Real TTY drivers are also supported.

Q: How is the module configured?
A: Configuration is done through the built-in web console over HTTP or the Windows utility, and the Device Search Utility can be used to locate units on the network.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
