Moxa MiiNePort E2-SDK | MiiNePort E2 Embedded Serial Device Server SDK, TTL

Authorised Moxa Partner

SKU:MiiNePort E2-SDK

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

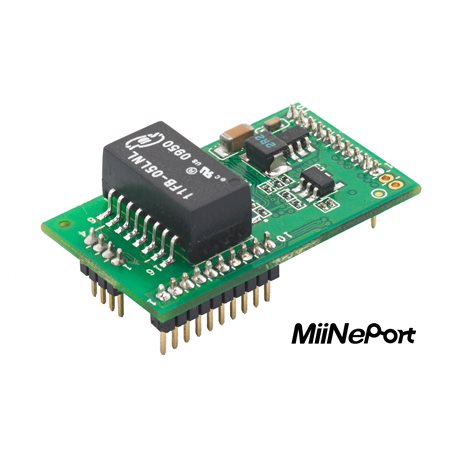

The Moxa MiiNePort E2-SDK is an embedded serial device server software development kit supplied with a MiiNePort E2 drop-in module. It lets developers add serial-to-Ethernet connectivity to a TTL serial device, with a 10/100BaseT(X) port, a TTL serial port supporting 50 bps to 921.6 kbps, and four software-configurable DIO channels on a compact 29 x 17 x 12.6 mm module.

The kit includes sample source code for TCP server, TCP client and UDP serial-to-Ethernet applications, along with NetEZ technology (EZPower, EZPage, SCM, AutoCFG and MCSC) for fast network integration. Configuration is available through a web console or Windows utility, and Real COM, Real TTY and fixed TTY drivers cover a wide range of operating systems.

Features

- Software development kit that includes a MiiNePort E2 module
- Compact drop-in module for adding Ethernet connectivity to serial devices
- Built-in TCP/IP protocols and easy-to-use network enabling tools for fast integration
- NetEZ technology: EZPower, EZPage, SCM, AutoCFG and MCSC
- Sample source code for TCP server/client and UDP serial-to-Ethernet applications
- Web console and Windows utility configuration
- Real COM, Real TTY and fixed TTY drivers for many operating systems

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 32-bit Arm core CPU
- 2 MB Flash, 4 MB SDRAM
- 1 x 10/100BaseT(X) port (4-pin pin header), 1.5 kV built-in magnetic isolation
- 1 x TTL serial port, 50 bps to 921.6 kbps
- 4 x software-configurable DIO channels
- 3.3 to 5 VDC input, 157 mA @ 3.3 VDC
- Drop-in module, 29 x 17 x 12.6 mm, 77 g
- Operating temperature 0 to 55°C
- MTBF 5,696,350 hrs (Telcordia SR-332)

FAQs

Q: Does the MiiNePort E2-SDK include a MiiNePort E2 module?
A: Yes. The SDK is supplied with a MiiNePort E2 drop-in module so you can begin development and testing straight away.

Q: What serial interface does the MiiNePort E2 module use?
A: It provides one TTL serial port supporting 50 bps to 921.6 kbps, with TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST and GND signals.

Q: What sample source code is included?
A: The kit includes serial-to-Ethernet examples for TCP server echo and TCP server to serial, TCP client echo and TCP client to serial, and UDP echo and UDP to serial.

Q: What operating modes and drivers are supported?
A: The module supports Real COM mode and Ethernet Modem mode. Real COM, Real TTY and fixed TTY drivers are available for Windows, Linux, macOS and several UNIX platforms.

Q: What power supply does the module need?
A: It runs from a 3.3 to 5 VDC input and draws 157 mA at 3.3 VDC.

Q: How is the module configured?
A: Configuration is available through a web console (HTTP) or a Windows utility, and the Device Search Utility (DSU) can be used to locate units on the network.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
