Moxa MiiNePort E2-H-T | MiiNePort E2 Embedded Device Server, TTL, 10/100, -40 to 85°C

Authorised Moxa Partner

SKU:MiiNePort E2-H-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

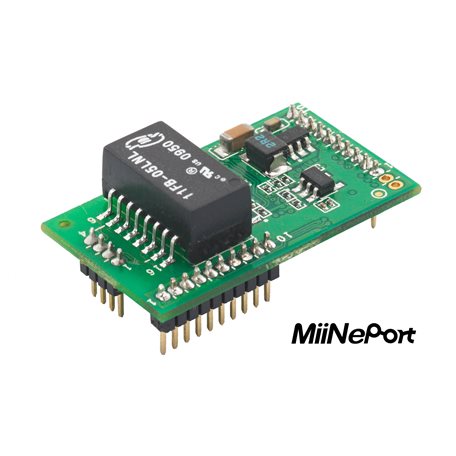

The Moxa MiiNePort E2-H-T is a compact embedded device server module that connects a single TTL serial device to a 10/100 Mbps Ethernet network. This wide temperature variant operates from -40 to 85°C and uses a 4-pin Ethernet header with no RJ45 connector, making it a drop-in module for OEM and industrial equipment designs.

It supports baud rates from 50 bps to 921.6 kbps, built-in 1.5 kV magnetic isolation and four software-configurable DIO channels. Operation modes include Real COM, RFC2217, TCP Client, TCP Server, UDP, Ethernet Modem and MCSC, with Windows Real COM and Linux Real TTY drivers for fast integration into existing software.

Features

- Compact drop-in module with 4-pin Ethernet header and no RJ45 connector
- Wide operating temperature range of -40 to 85°C for harsh environments
- Operation modes: Real COM, RFC2217, TCP Client, TCP Server, UDP, Ethernet Modem, MCSC
- Configuration via Web Console (HTTP) and Windows Utility
- Management protocols: ARP, BOOTP, DSU, DHCP Client, IPv4, SMTP, SNMPv1, TCP/IP, Telnet, TFTP, UDP, ICMP
- Windows Real COM drivers and Linux Real TTY drivers
- Fixed TTY drivers for SCO UNIX, QNX, Solaris, FreeBSD, AIX, HP-UX and Mac OS X
- Android API for Android 3.1.x and later

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: 32-bit Arm Core
- Flash: 2 MB; SDRAM: 4 MB
- Serial: 1 port, TTL
- Baud rate: 50 bps to 921.6 kbps
- Data bits: 5, 6, 7, 8; Stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, DTR/DSR, XON/XOFF
- Ethernet: 10/100BaseT(X), Auto MDI/MDI-X, 4-pin pin header (no RJ45)
- Magnetic isolation protection: 1.5 kV (built-in)
- 4 x software-configurable DIO channels
- Input voltage: 3.3 to 5 VDC; input current: 157 mA @ 3.3 VDC
- Operating temperature: -40 to 85°C

FAQs

Q: What type of serial interface does the MiiNePort E2-H-T provide?
A: It provides one TTL-level serial port with baud rates from 50 bps to 921.6 kbps, supporting 5 to 8 data bits, 1, 1.5 or 2 stop bits and a choice of parity and flow control settings.

Q: Does this module have an RJ45 Ethernet port?
A: No. The Ethernet interface is a 4-pin pin header, so the module drops directly onto your own board design. A separate magnetics and connector arrangement is handled in the host design.

Q: What is the operating temperature range?
A: The E2-H-T is the wide temperature variant and operates from -40 to 85°C, suited to industrial and outdoor equipment.

Q: What power supply does it need?
A: It runs from 3.3 to 5 VDC, drawing 157 mA at 3.3 VDC.

Q: Which operating systems and drivers are supported?
A: Windows Real COM drivers and Linux Real TTY drivers are available, along with fixed TTY drivers for SCO UNIX, QNX, Solaris, FreeBSD, AIX, HP-UX and Mac OS X, plus an Android API for Android 3.1.x and later.

Q: How is the module configured?
A: You can configure it through the built-in Web Console over HTTP or with the Windows Utility.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
