Moxa MiiNePort E2-H | Embedded Device Server, TTL, 0-55°C, No RJ45

Authorised Moxa Partner

SKU:MiiNePort E2-H

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

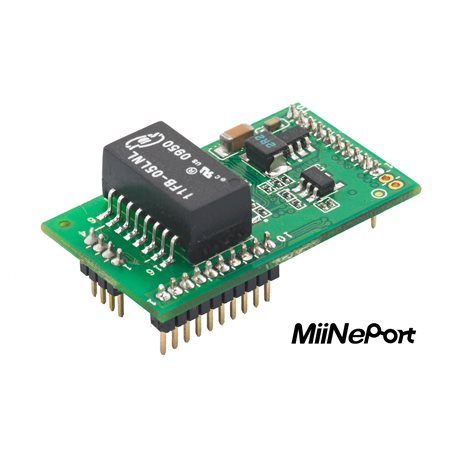

The Moxa MiiNePort E2-H is a compact embedded device server that adds 10/100 Mbps Ethernet connectivity to TTL serial devices. It supports serial baud rates from 50 bps to 921.6 Kbps, covering high-speed serial equipment, and operates across a 0 to 55°C temperature range. This variant uses a 4-pin Ethernet pin header with no RJ45 connector, making it a drop-in module for space-constrained device designs.

Built on Moxa's second-generation MiiNe SoC with NetEZ technology, the module simplifies integration into existing serial products. It supports Real COM, TCP Server, TCP Client, RFC2217, UDP, Ethernet Modem and MCSC operation modes, and can be configured through a web console or Windows utility. At just 29 x 17 x 12.6 mm with extremely low power consumption, it suits OEMs and system integrators networking serial devices.

Features

- Built on Moxa's second-generation MiiNe SoC
- NetEZ technology for simple integration into serial devices
- Operation modes: Real COM, TCP Server, TCP Client, RFC2217, UDP, Ethernet Modem and MCSC
- Windows Real COM drivers
- Extremely low power consumption
- Compact module with 4-pin Ethernet pin header for drop-in embedding

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: 32-bit Arm core
- Flash: 2 MB
- SDRAM: 4 MB
- Ethernet: 10/100BaseT(X), auto MDI/MDI-X, 4-pin pin header (no RJ45 connector)
- Magnetic isolation protection: 1.5 kV (built-in)
- Serial baudrate: 50 bps to 921.6 Kbps
- Configurable DIO channels (by software): 4
- Operating temperature: 0 to 55°C
- Size: 29 x 17 x 12.6 mm
- Power consumption: 140 mA @ 3.3 VDC or 92 mA @ 5 VDC
- Configuration: Web console (HTTP), Windows utility
- Protocols: ARP, BOOTP, DHCP client, DSU, IPv4, SMTP, SNMPv1, TCP/IP, Telnet, TFTP, UDP, ICMP

FAQs

Q: What type of serial interface does the MiiNePort E2-H support?
A: It connects to TTL-level serial devices and supports baud rates from 50 bps to 921.6 Kbps.

Q: Does the MiiNePort E2-H have an RJ45 connector?
A: No. Ethernet is provided through a 4-pin pin header, which suits embedded designs where a connector is added on the host board.

Q: What operation modes are available?
A: Real COM, TCP Server, TCP Client, RFC2217, UDP, Ethernet Modem and MCSC modes are supported.

Q: How is the module configured?
A: It can be configured through a web console (HTTP) or a Windows utility, and Windows Real COM drivers are available.

Q: What is the operating temperature range?
A: This model operates from 0 to 55°C.

Q: What power supply does the module need?
A: It draws 140 mA at 3.3 VDC or 92 mA at 5 VDC, so it suits low-power embedded designs.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
