Moxa MiiNePort E1-T | Embedded Device Server, TTL, 10/100M, Wide Temp

Authorised Moxa Partner

SKU:MiiNePort E1-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

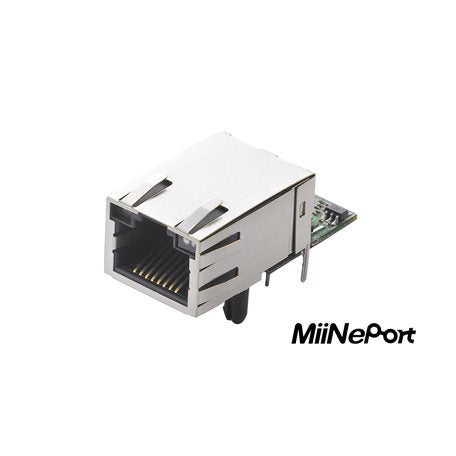

The MiiNePort E1-T is an embedded device server that adds serial-to-Ethernet connectivity to TTL-based devices. This wide-temperature model (-40 to 85°C) provides one TTL serial port and one 10/100BaseT(X) RJ45 port, with baudrates from 50 bps to 230.4 kbps. It is supplied as a standalone module, without an evaluation board or SDK.

About the size of an RJ45 connector, this drop-in module is built on Moxa's MiiNe SoC with a 32-bit Arm core, 2 MB flash and 4 MB SDRAM. It supports Real COM, RFC2217, TCP Client, TCP Server and UDP operation modes, and NetEZ functions help simplify integration into OEM and industrial equipment.

Features

- Drop-in module the same size as an RJ45 connector
- Extremely low power consumption
- MiiNe second-generation SoC with 32-bit Arm core
- NetEZ technology: ExTrigger, SCM, AutoCFG and MCSC for easy integration
- Operation modes: Real COM, RFC2217, TCP Client, TCP Server and UDP
- Configuration via web console, Windows utility, Telnet or serial console
- Real COM drivers for Windows, Linux real TTY drivers and an Android API
- Wide operating temperature range of -40 to 85°C

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x TTL serial port
- 1 x 10/100BaseT(X) 8-pin RJ45 port, auto MDI/MDI-X
- Baudrate: 50 bps to 230.4 kbps
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, XON/XOFF
- Serial signals (TTL): TxD, RxD, RTS, CTS, RST, GND
- 32-bit Arm core, 2 MB flash, 4 MB SDRAM
- 1 configurable DIO channel (1 digital input, 1 digital output)
- 1.5 kV built-in magnetic isolation protection
- Input voltage: 3.3 VDC, 160 mA max.
- Dimensions: 33.9 x 16.25 x 13.5 mm, weight 9 g
- Operating temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- MTBF: 5,515,294 hrs (Telcordia SR332)
- Compliance: CISPR 32, FCC Part 15B Class B, EN 55032/35, RoHS, CRoHS, WEEE

FAQs

Q: What serial interface does the MiiNePort E1-T use?
A: It has one TTL serial port with TxD, RxD, RTS, CTS, RST and GND signals. It is not an RS-232, RS-422 or RS-485 interface, so it connects directly to TTL-level devices.

Q: What baudrate range does this model support?
A: The MiiNePort E1-T supports baudrates from 50 bps to 230.4 kbps.

Q: What operating temperature range is supported?
A: This is a wide-temperature model rated for -40 to 85°C.

Q: Does it come with an evaluation board or SDK?
A: No. This SKU is the module only, supplied without an evaluation board or SDK.

Q: What power supply does the module need?
A: It runs from 3.3 VDC and draws up to 160 mA, so it is powered from the host board.

Q: Which operation modes and drivers are available?
A: Operation modes are Real COM, RFC2217, TCP Client, TCP Server and UDP. Real COM drivers cover Windows, Linux real TTY drivers cover kernel 2.4.x to 5.x, and an Android API is available for Android 3.1.x and later.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
